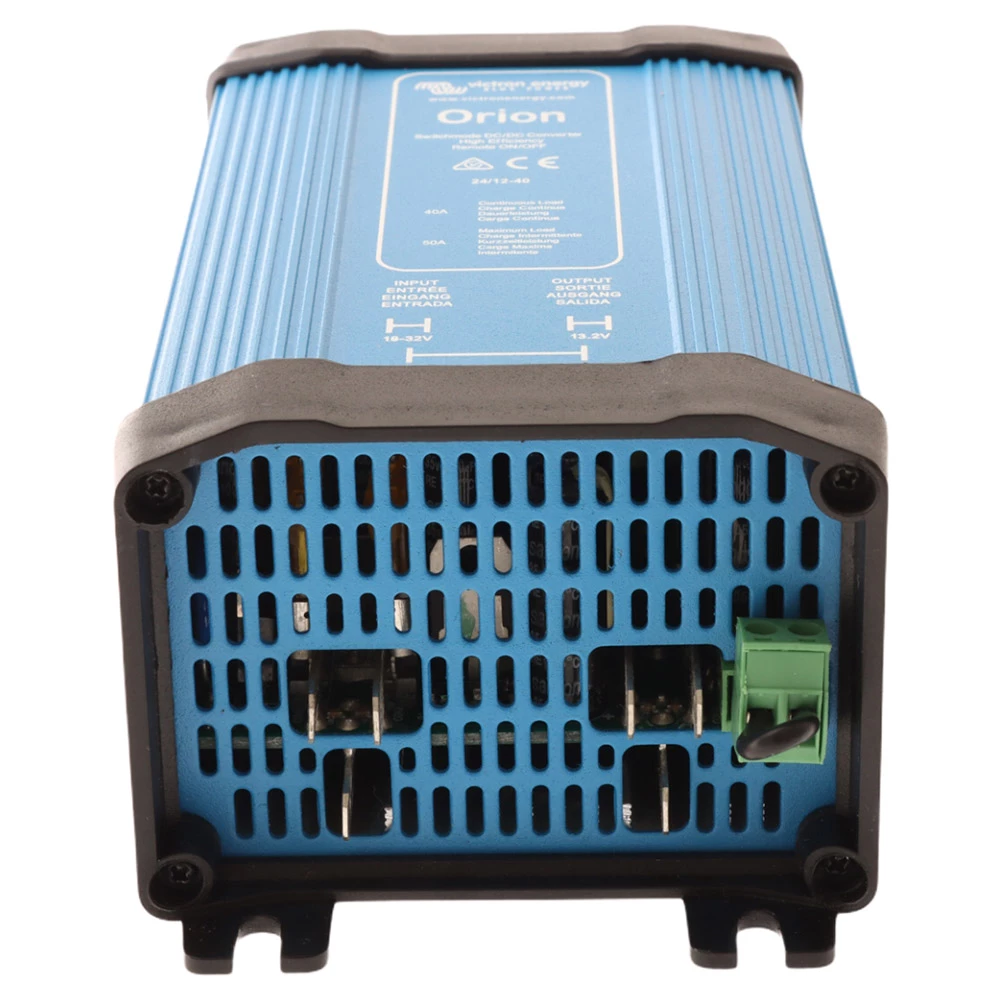

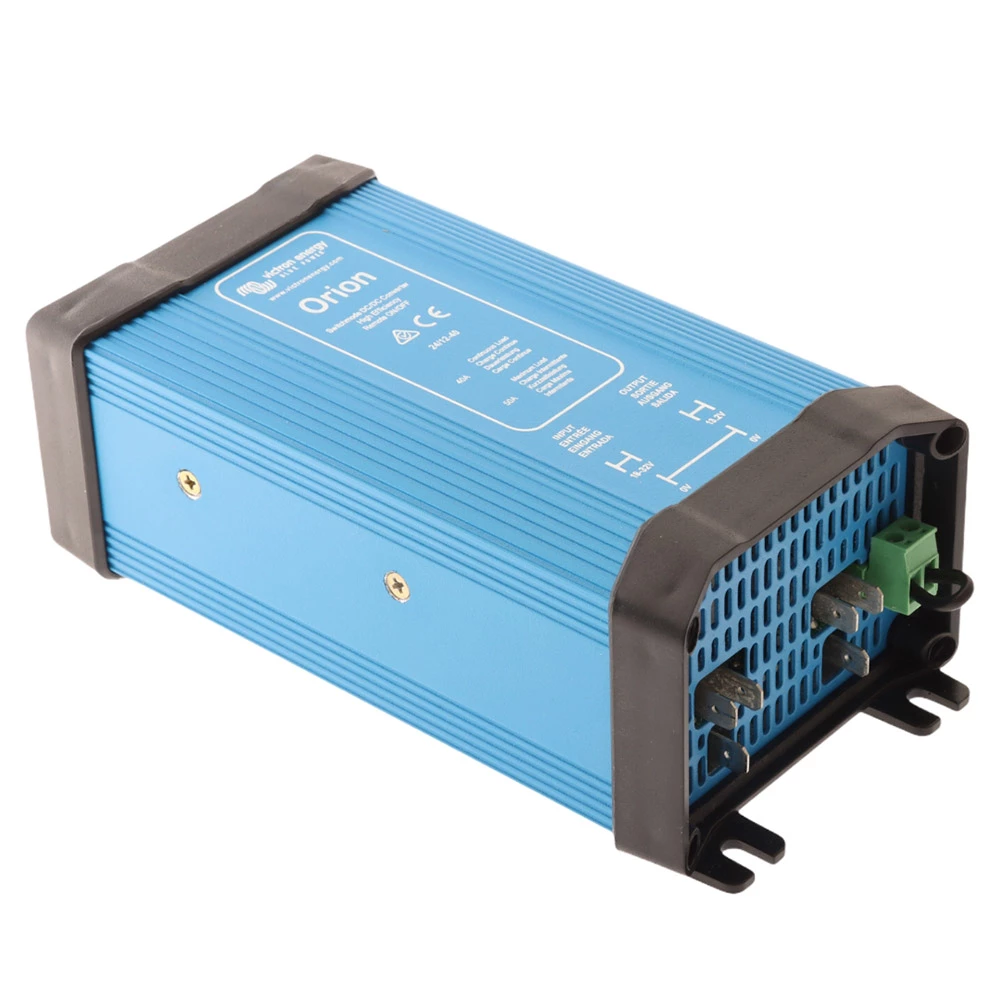

Victron Energy Victron Orion DC/DC Converter Non Isolated High Output 24V – 12V 40A Fixed Output

Powerful and reliable

The Victron Orion DC/DC Converter delivers the power, range and performance Victron converters are known for. This converter features a remote on-off connector which eliminates the need for a high current switch in the input wiring. The remote can be operated with a low power switch or by the engine run/stop switch. Make sure you install a reliable converter, grab the Victron Orion DC/DC Converter today!

Victron Orion DC/DC Converter Features:

• Remote on-off connector
• Non isolated high fxed output voltage

Victron Orion-TR Isolated DC/DC Converter Specifications:

• Input voltage range: 18-35V
• Under voltage shut down: 14V
• Under voltage restart: 18V
• Nominal output voltage: 12.2V
• Output voltage: 13.2V
• Efficiency: 95 percent
• Continuous output current: 40A
• Max. Output current: 55A
• Fan assisted cooling (temp. controlled): Yes
• Off load current:
• Operating temperature range (derate 3 percent per deg C above 40deg C): 20 to +55deg C
• DC connection: Double Faston tabs 6.3 mm
• Weight kg (lbs): 0.85 (1.9)
• Dimensions (H x W x D): 65 x 88 x 185mm
• Safety: EN 60950
• Emission: EN 61000-6-3, EN 55014-1
• Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive: ECE R10-4
