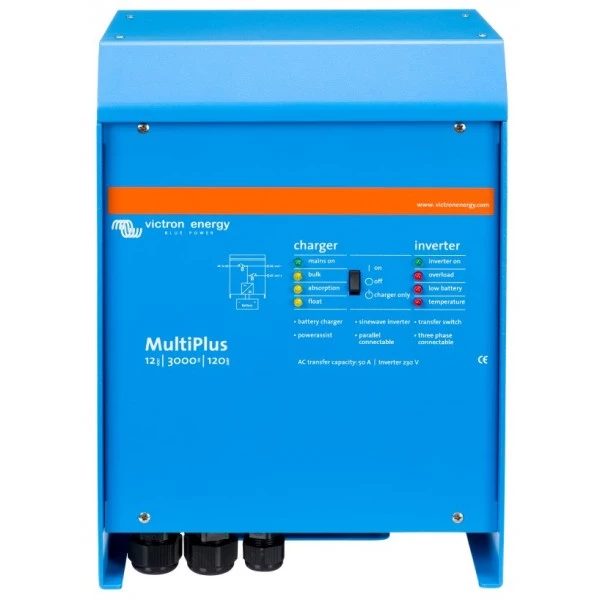

Victron Energy Victron MultiPlus Inverter/Charger 12V VE.Bus

Multi-functional

The MultiPlus is a powerful true sine wave inverter, a
sophisticated battery charger that features adaptive charge
technology and a high-speed AC transfer switch in a single compact
enclosure. Models range from 800VA to 5000VA per module.

Unique PowerAssist feature

The MultiPlus will prevent overload of a limited AC source.
First, battery charging will automatically be reduced when
otherwise an overload would occur. The second level will boost the
output of a generator or shore side supply with power taken from
the battery.

Uninterrupted AC power (UPS function)

In the event of a grid failure or shore or generator power being
disconnected, the inverter within the Multi is automatically
activated and takes over the supply to the connected loads. This
happens so fast (less than 20 milliseconds) that computers and
other electronic equipment will continue to operate without
disruption.

Virtually unlimited power thanks to parallel operation

Up to 6 Multis can operate in parallel to achieve higher power
output. Three phase or split phase operation is also possible.
Please check Victron Energy’s datasheets to see which models have
paralleling, three-phase and split phase capabilities.
