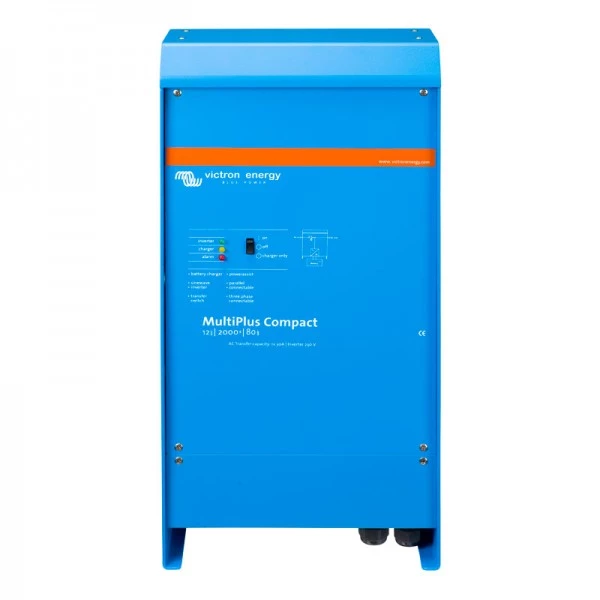

Victron Energy Victron MultiPlus Compact Inverter/Charger 12V 230V VE.Bus

The MultiPlus Compact gets its name from the multiple functions
it can perform. It is a powerful true sine wave inverter, a
sophisticated battery charger that features adaptive charge
technology and a high-speed AC transfer switch in a single compact
enclosure. Beside these primary functions, however, the MultiPlus
Compact has several advanced features that provide a range of new
applications as outlined below.

Uninterrupted AC power

In the event of a grid failure, or shore or generator power
being disconnected, the inverter within the MultiPlus Compact is
automatically activated and takes over supply to the connected
loads. This happens so fast (less than 20 milliseconds) that
computers and other electronic equipment will continue to operate
without disruption. Parallel and 3-phase operation capability Up to
6 inverters can operate in parallel to achieve higher power output.
Operation in 3-phase configuration is also possible.

PowerControl – Dealing with limited generator or shore side
power

With a Multi Control Panel a maximum generator or shore current
can be set. The MultiPlus Compact will then take account of other
AC loads and use whatever is extra for charging, thus preventing
the generator or shore supply from being overloaded.

PowerAssist – Boosting the capacity of shore or generator
power

This feature takes the principle of PowerControl to a further
dimension allowing the MultiPlus Compact to supplement the capacity
of the alternative source. Where peak power is so often required
only for a limited period, it is possible to reduce the size of
generator needed or conversely enable more to be achieved from the
typically limited shore connection. When the load reduces, the
spare power is used to recharge the battery.

Programmable relay

The MultiPlus is equipped with a programmable relay that by
default is set as an alarm relay. The relay can be programmed for
all kinds of other applications however, for example as a starter
relay for a generator.
