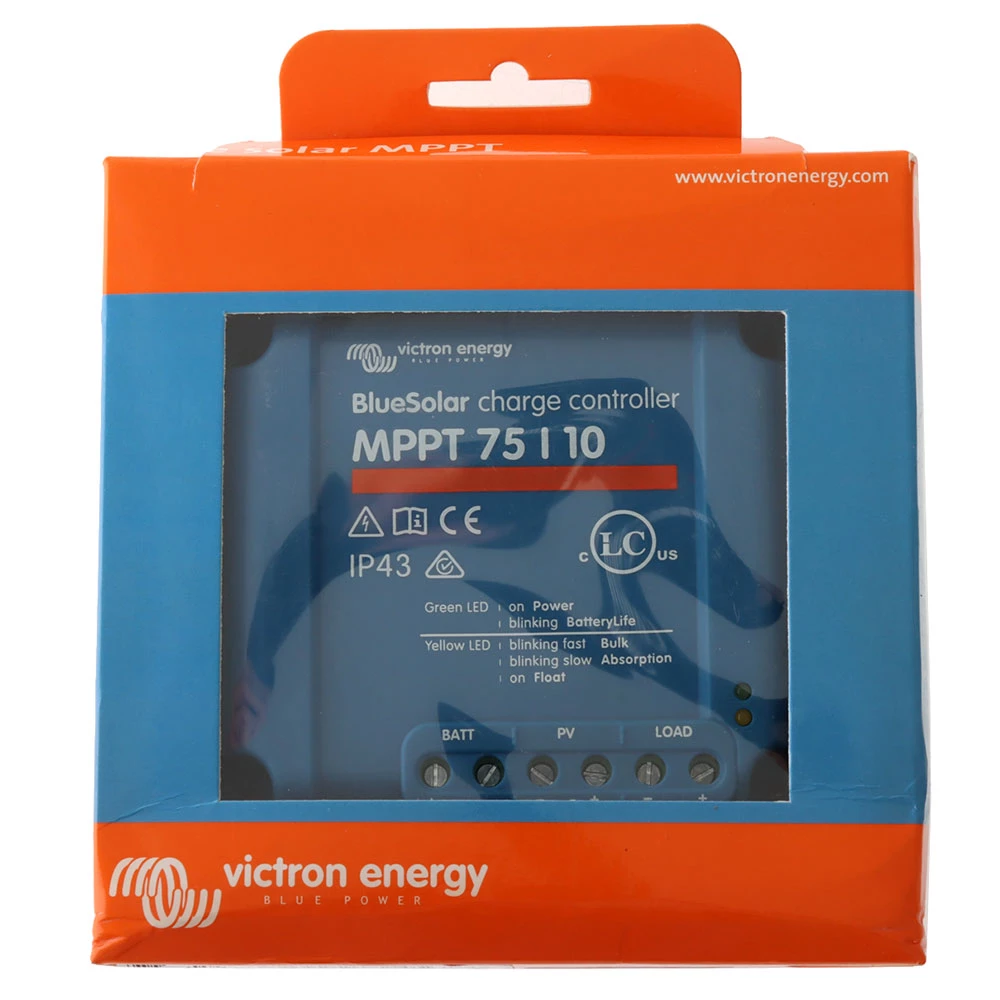

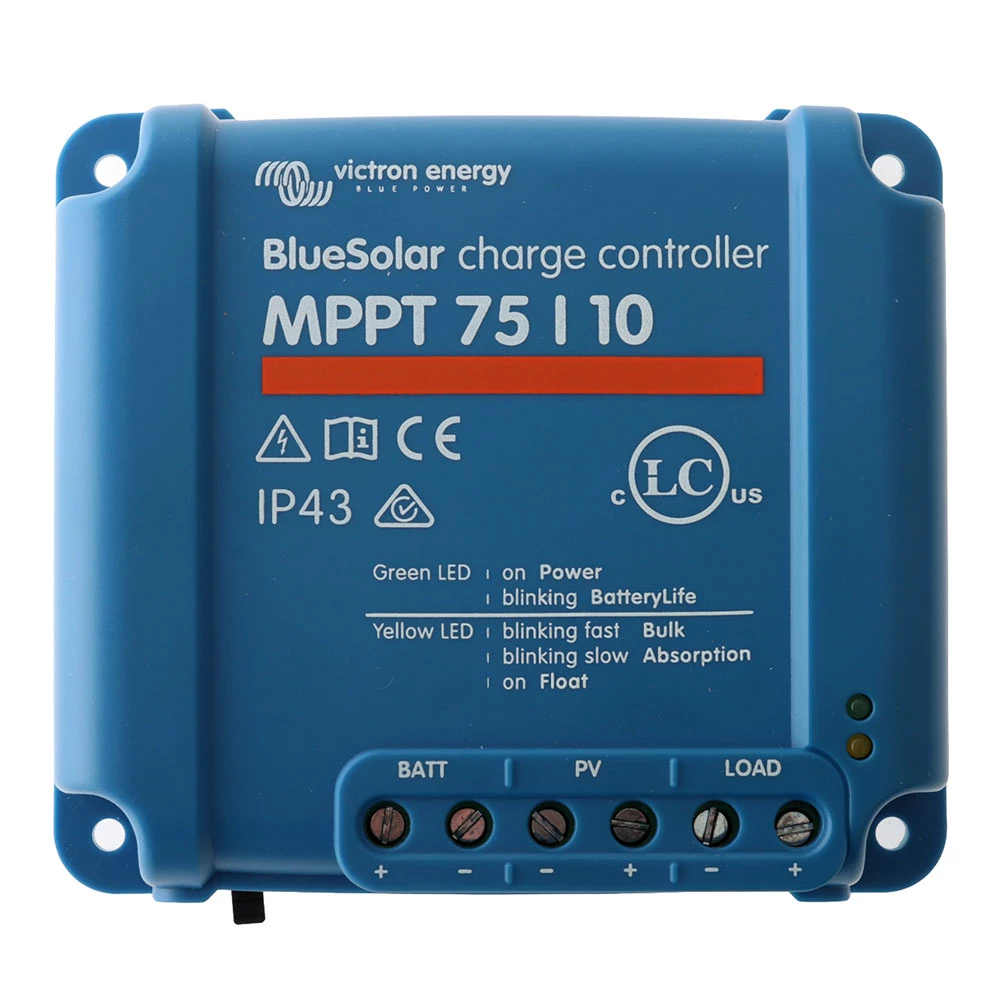

Victron Energy Victron MPPT BlueSolar Charger Controller With Load Control 75V 10A

Optimize your solar charger

Solar chargers gather energy from solar panels and store it in your batteries. Using the latest, fastest technology, the Victron MPPT BlueSolar Charger Controller maximises this energy-harvest process, optimizing it to achieve full charge in the shortest possible time. This smart charge controller also maintains battery health and extends its life.

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of the panels and harvested for storage. This is most useful when the sky is partially clouded and light intensity is constantly changing. Make the most out of your solar charger. Add a Victron MPPT BlueSolar Charger Controller.

Victron MPPT BlueSolar Charger Controller Features:

• Ultra fast MPPT tracking
• VE direct
• Intelligent battery management
• Three step charging: Bulk, Absorption, Float
• Internal temperature sensor
• Automatic battery voltage recognition

Victron MPPT BlueSolar Charger Controller Specifications:

• Model: SCC010010050R
• Battery voltage: 12/24V auto select
• Maximum PV open circuit voltage: 75V
• Maximum battery current: 10A
• Nominal PV power 12V 1a,b): 145W
• Nominal PV power 24V 1a,b): 290W
• Max PV short circuit current 2): 13A
• Automatic load disconnect: Yes, maximum load 15A
• Peak efficiency: 98%
• Self consumption: 12V: 20 mA, 24V: 10 mA
• Charge voltage ‘absorption’: 14.4V / 28.8V (adjustable)
• Charge voltage ‘equalization’: 16.2V / 32.4V (adjustable)
• Charge voltage ‘float’: 13.8V / 27.6V (adjustable)
• Charge algorithm: multi-stage adaptive or user defined algorithm
• Temperature compensation: -16mV / deg C resp. -32mV / deg C 15A
• Continuous load current: 15A
• Low voltage load disconnect: 11.1V / 22.2V or 11.8V / 23.6V or BatteryLife algorithm
• Low voltage load reconnect: 13.1V / 26.2V or 14V / 28V or BatteryLife algorithm
• Protection: Output short circuit / Over temperature
• Operating temperature: -30 to +60deg C (full rated output to 40deg C)
• Humidity: 100%, non condensing
• Maximum altitude: 5000m (full rated output up to 2000m
• Environmental condition: Indoor type 1, unconditioned
• Pollution degree: PD3
• Data communication port: VE.direct

Enclosure

• Colour: Blue (RAL 5012)

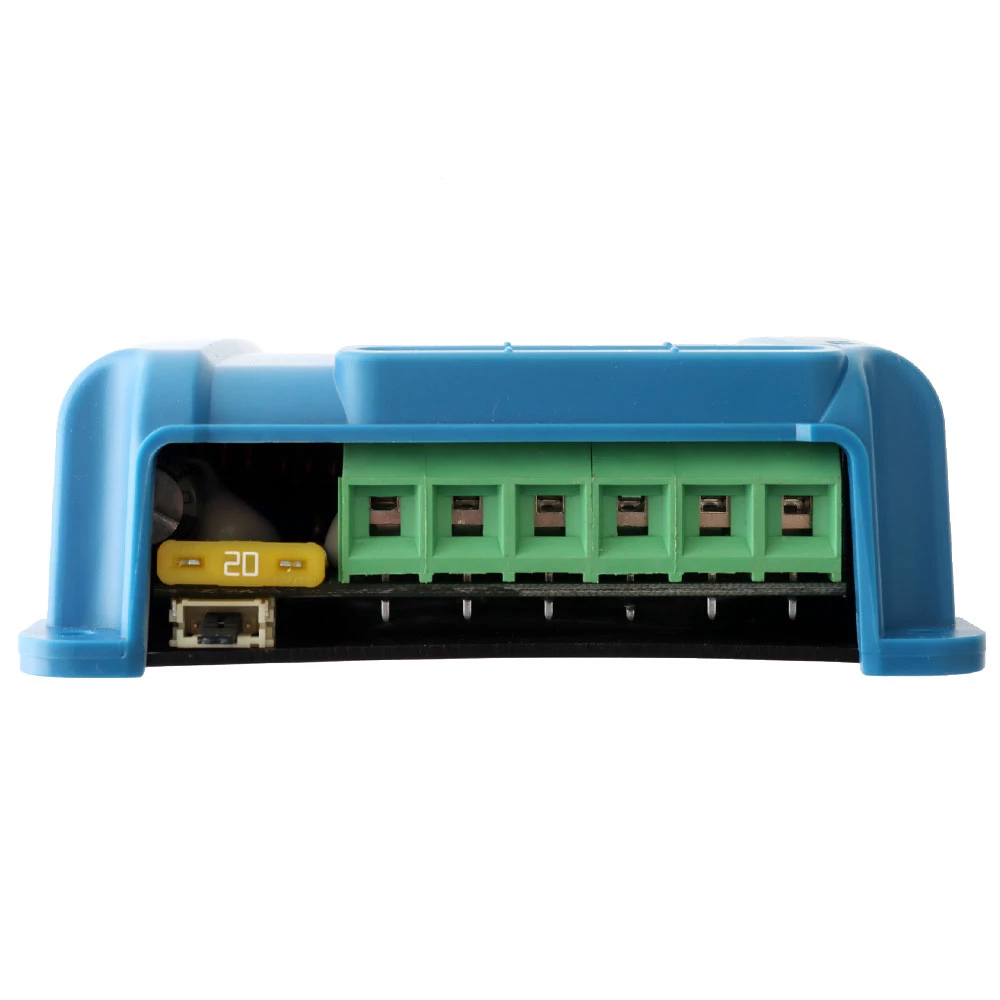

• Power terminals: 6sq. mm / AWG10
• Protection category: IP43 (electronic components), IP22 (connection area)
• Weight: 0.5kg
• Dimensions (H x W x D): 100 x 113 x 40mm

Standards

• Safety: EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16
• 1a) If more PV power is connected, the controller will limit input power
• 1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
• 2) A higher short circuit current may damage the controller in case of reverse polarity connection of the PV array
• 3) Default setting: OFF

Victron MPPT BlueSolar Charge Controller 75V 10A Product Manual

Note: When selecting a charge controller, the max open circuit voltage of the panels must not exceed the rated voltage of the charge controller.
