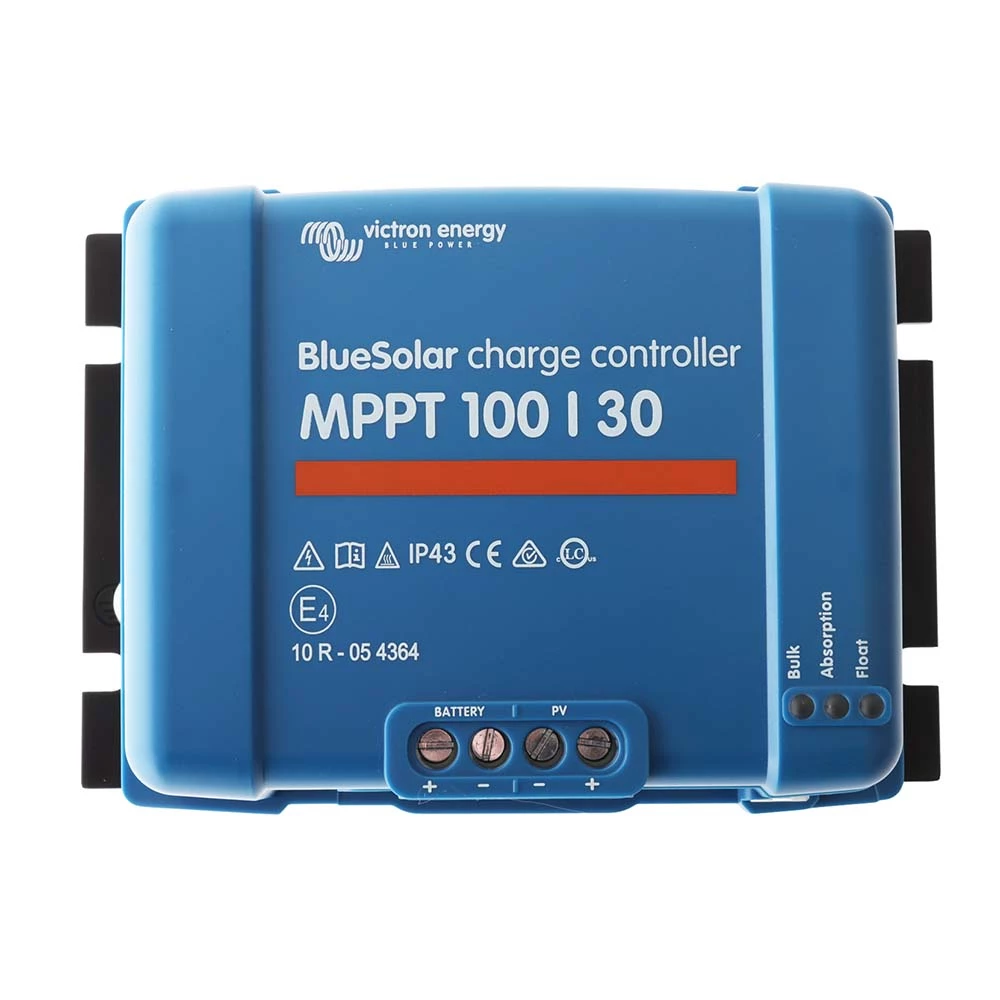

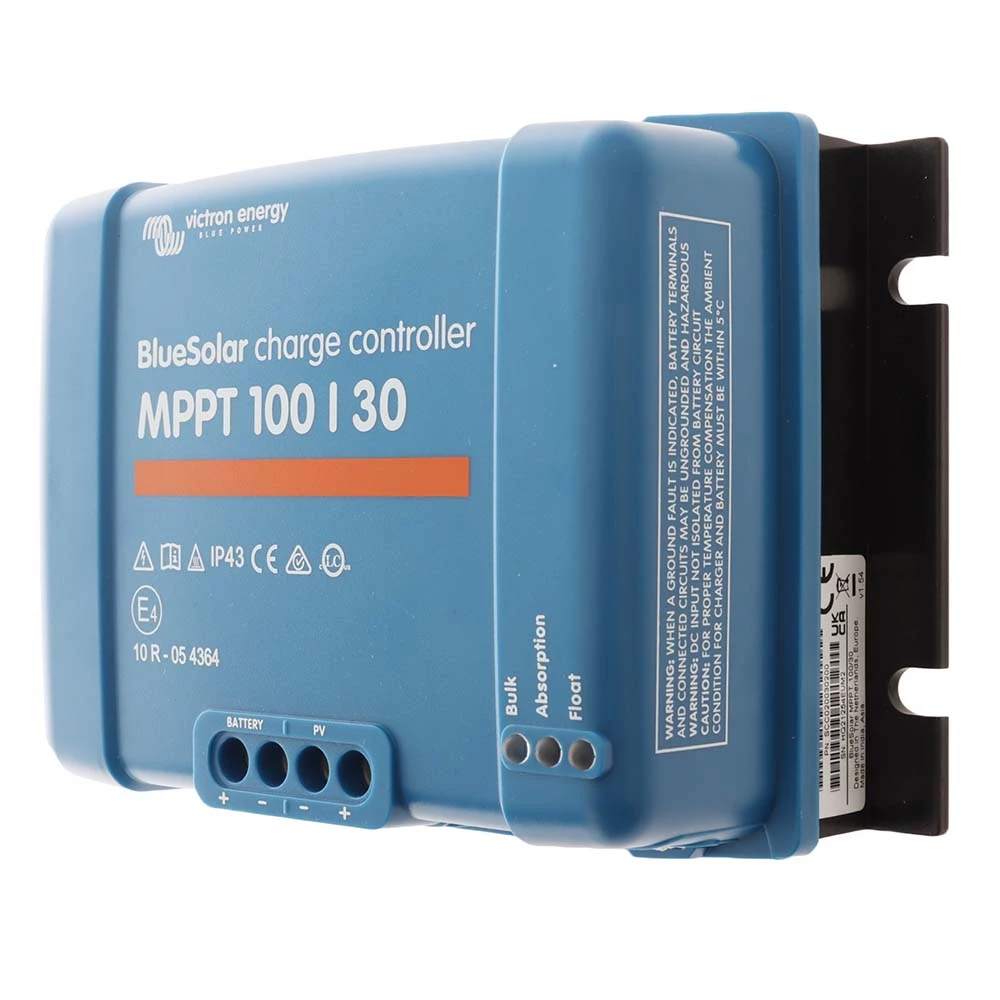

Victron Energy Victron MPPT BlueSolar Charger Controller 100V 30A

Optimize your solar charger

Solar chargers gather energy from solar panels and store it in your batteries. Using the latest, fastest technology, the Victron MPPT BlueSolar Charger Controller maximises this energy-harvest process, optimizing it to achieve full charge in the shortest possible time. This smart charge controller also maintains battery health and extends its life.

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of the panels and harvested for storage. This is most useful when the sky is partially clouded and light intensity is constantly changing. Make the most out of your solar charger. Add a Victron MPPT BlueSolar Charger Controller.

Victron MPPT BlueSolar Charger Controller Features:

• Ultra fast MPPT tracking
• Advanced maximum power point detection in case of partial shading conditions
• Outstanding conversion efficiency
• Flexible charge algorithm
• Internal temperature sensor

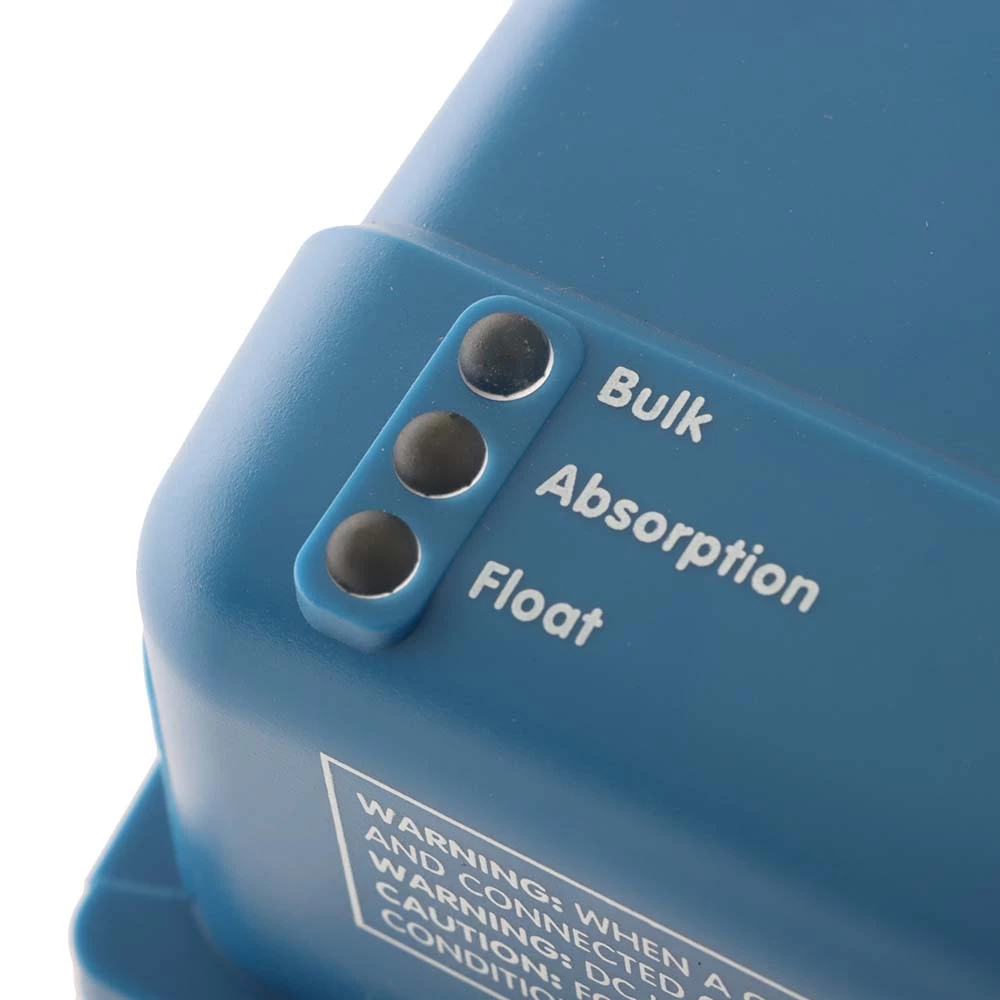

• Real time data display options

Victron MPPT BlueSolar Charger Controller Specifications:

• Model: SCC020030200
• Battery voltage: 12/24V auto select
• Rated charge current: 30A
• Nominal PV power, 12V 1a,b): 440W
• Nominal PV power, 24V 1a,b): 880W
• Maximum PV open circuit voltage: 100V
• Max. PV short circuit current 2): 35A
• Maximum efficiency: 98%
• Self-consumption: 12V: 30 mA, 24V: 20 mA
• Charge voltage ‘absorption’: Default setting: 14.4V / 28.8V (adjustable)
• Charge voltage ‘float’: Default setting: 13.8V / 27.6V (adjustable)
• Charge algorithm: Multi-stage adaptive
• Temperature compensation: -16mV / deg C resp. -32mV / deg C
• Operating temperature: -30 to +60deg C (full rated output up to 40deg C)
• Humidity: 95% non condensing

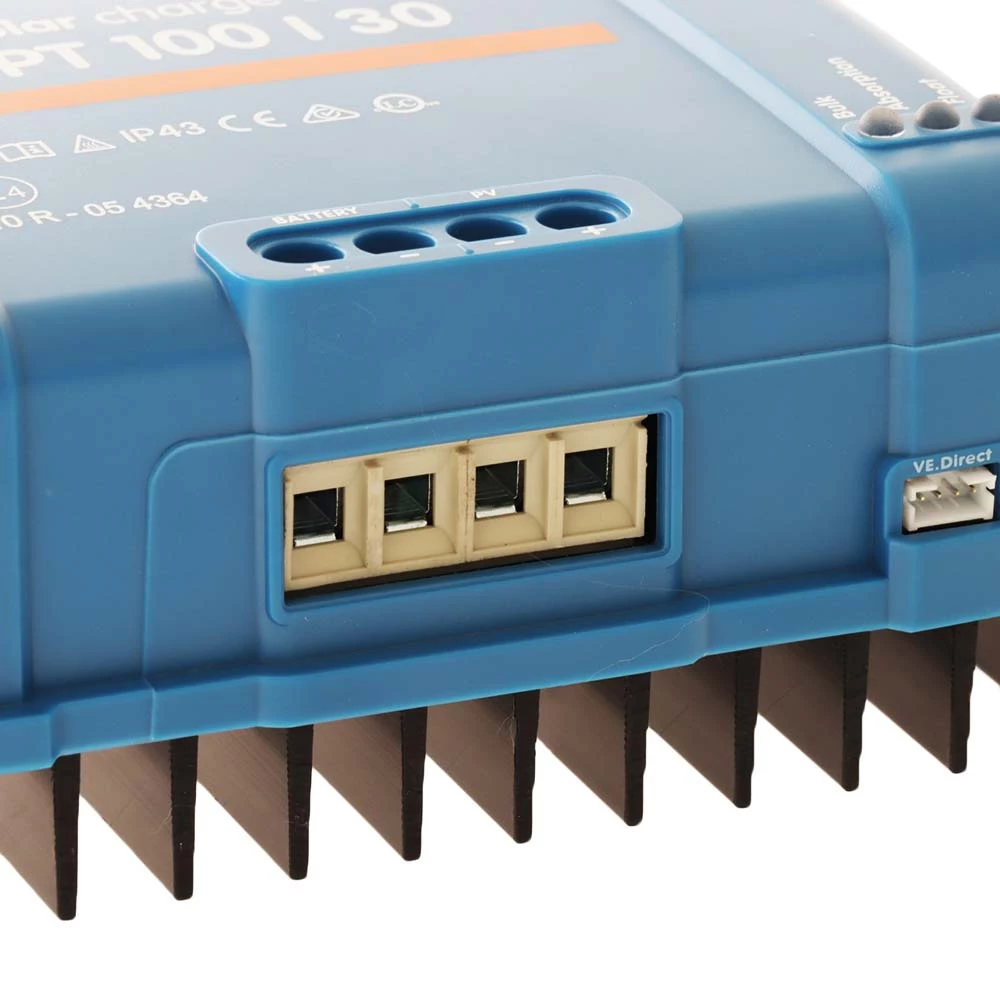

• Data communication port: VE.Direct

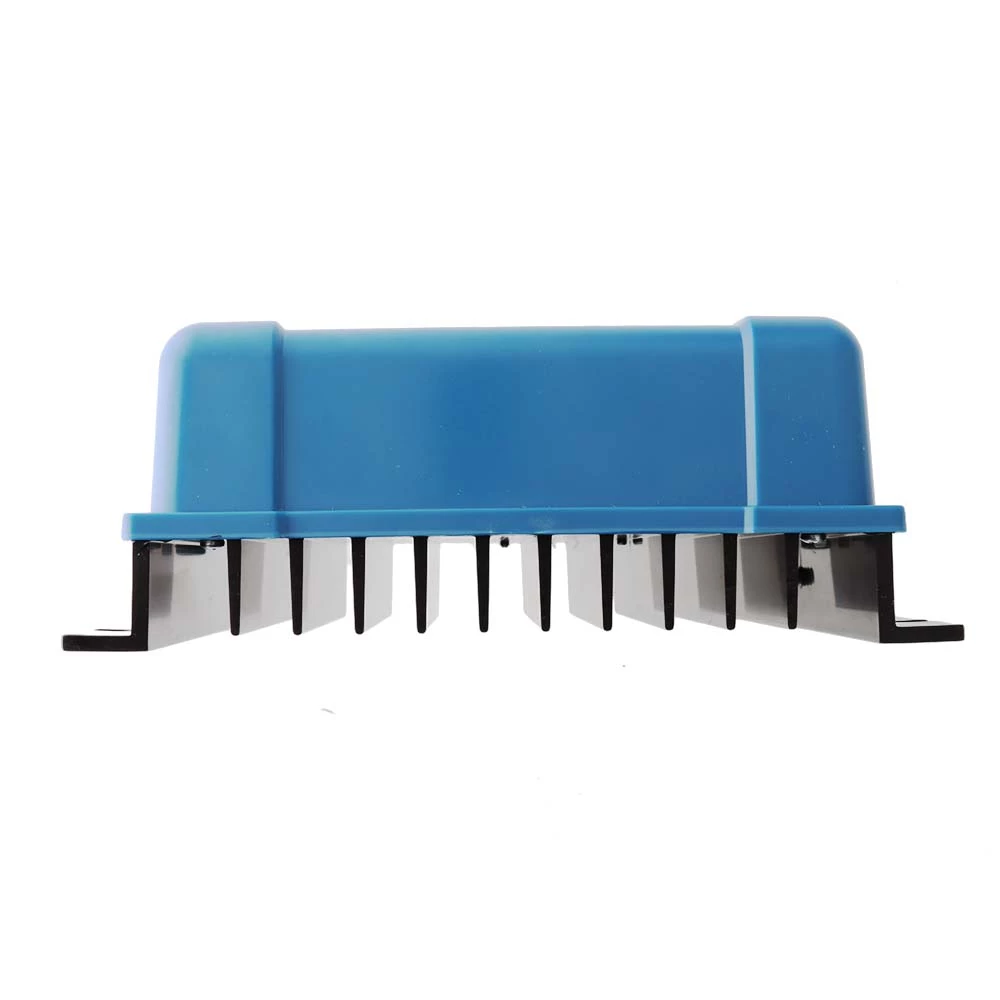

Enclosure

• Colour: Blue (RAL 5012)

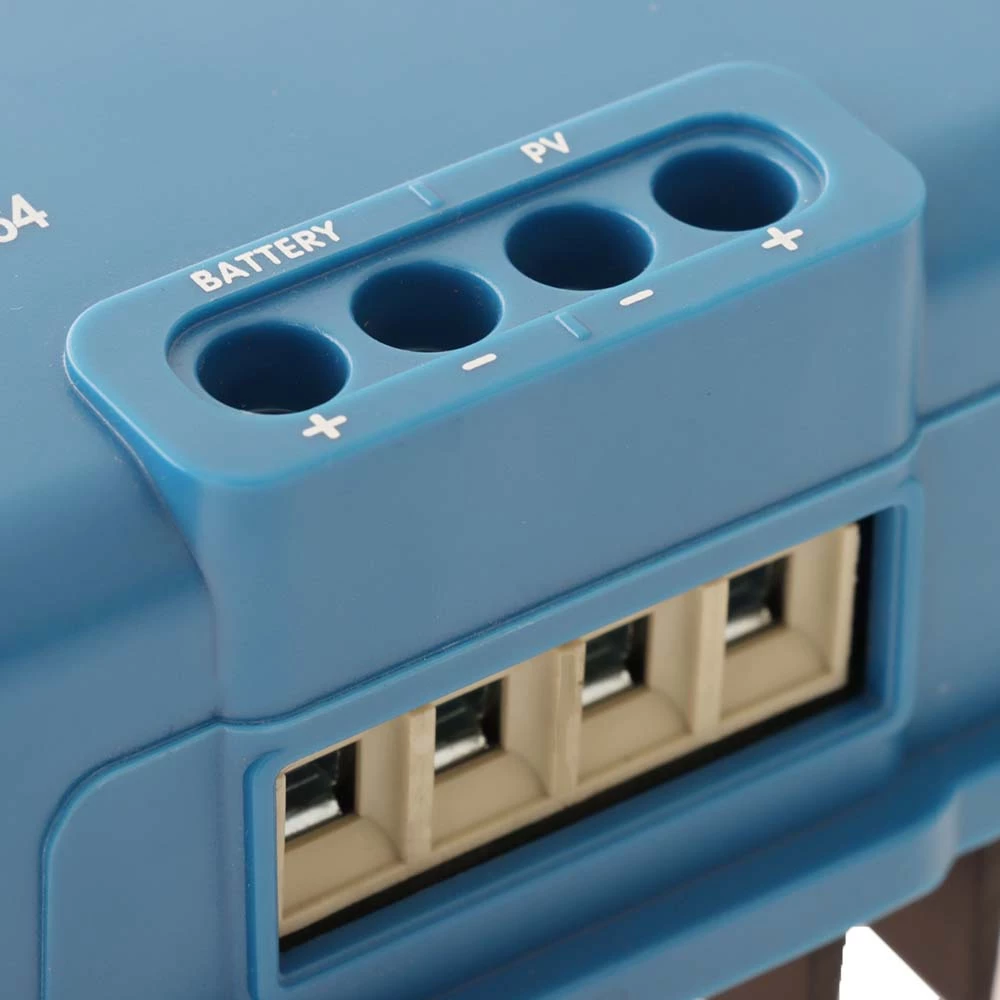

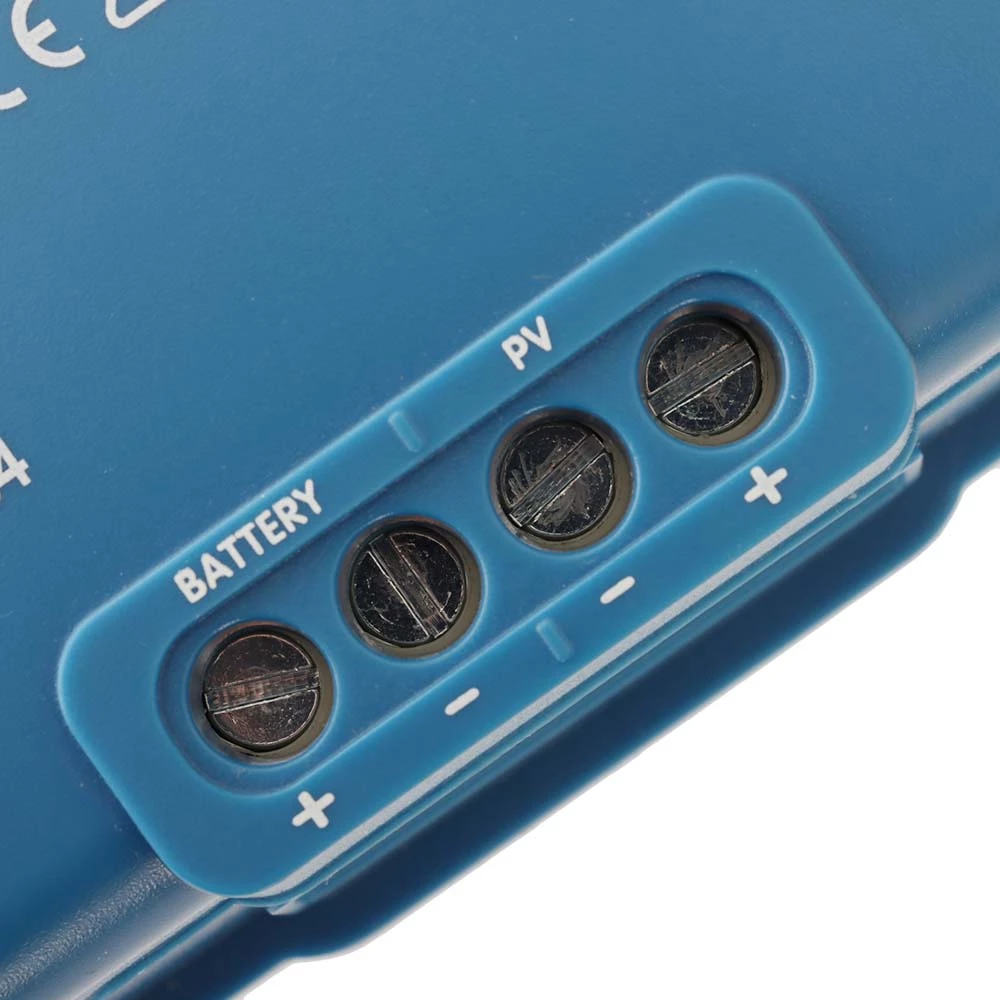

• Power terminals: 16sq. mm / AWG6
• Protection category: IP43 (electronic components), IP22 (connection area)
• Weight: 1.3kg
• Dimensions (H x W x D): 130 x 186 x 70mm

Standards

• Safety: EN/IEC 62109-1 / UL 1741 / CSA C22.2
• 1a) If more PV power is connected, the controller will limit input power
• 1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V
• 2) A higher short circuit current may damage the controller in case of reverse polarity connection of the PV array
