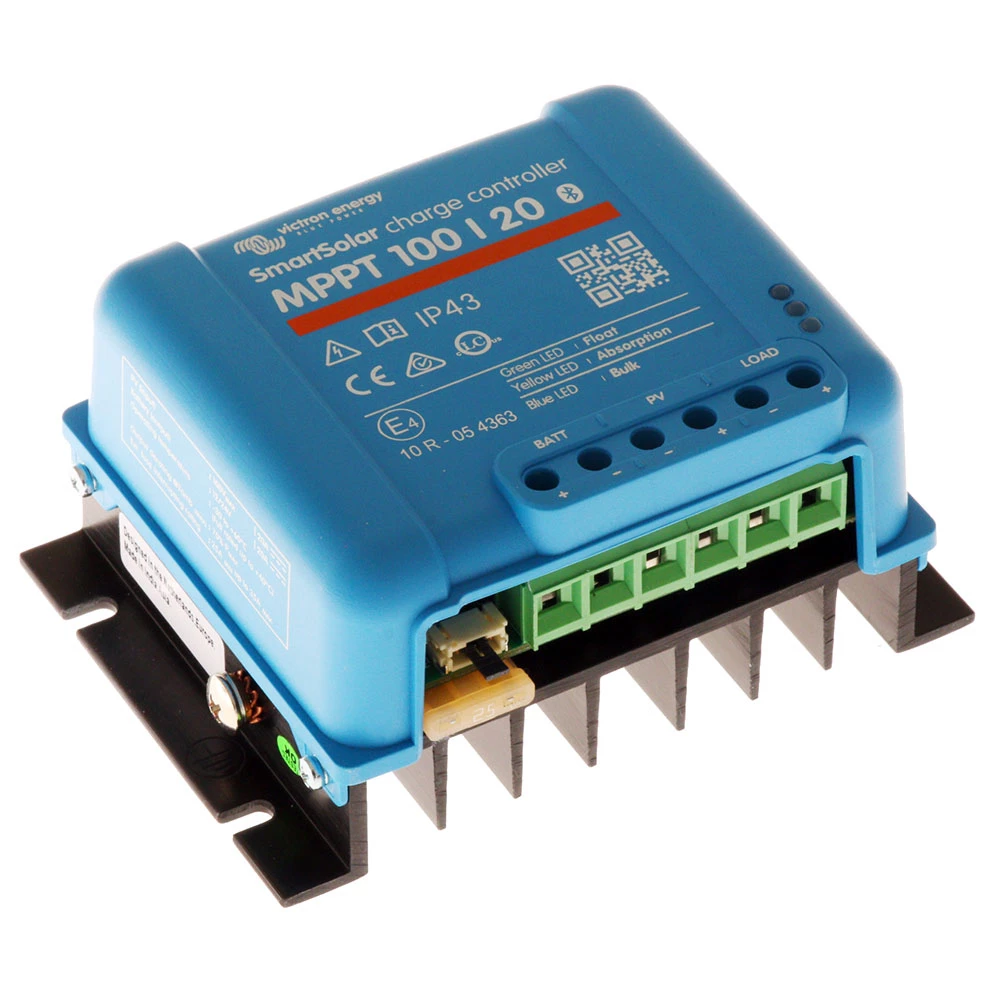

Victron Energy SmartSolar Charge Controller MPPT 100/20 12/24 Amp 48V

Achieve full charge in the shortest possible time

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, Victron Energy SmartSolar Charge Controller maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Victron Energy SmartSolar Charge Controller Features:

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection in case of partial shading conditions
• Outstanding conversion efficiency
• Natural convection cooling
• Automatic battery voltage recognition
• Flexible charge algorithm
• Over temperature protection and power derating when temperature is high

Victron Energy SmartSolar Charge Controller MPPT 100/20 12/24 amp 48V Specifications:

General

• SmartSolar Charge Controller: 100/20-48V
• Battery voltage (auto select): 48V
• Rated charge current: 20A
• Nominal PV power, 48v 1a,b: 1160W
• Max. PV short circuit current 2): 20A
• Automatic load disconnect: Yes
• Max. PV open circuit voltage: 100V
• Peak efficiency: 90%
• Self-consumption: 25/15/10 mA
• Charge voltage ‘absorption’: 14,4V / 28,8V / 57,6V (adj.)
• Charge voltage ‘float’: 13,8V / 27,6V / 55,2V (adj.)
• Charge algorithm: Multi-stage adaptive
• Temperature compensation: -16 mV / °C resp. -32 mV / °C
• Max. continuous load current: 20A/20A/1A
• Low voltage load disconnect: 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect: 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection: Output short circuit/ Over temperature
• Operating temperature: -30 to +60°C (full rated output up to 40°C)
• Humidity: 95%, non-condensing
• Data communication port: VE.Direct
• Safety: EN/IEC 62109-1, UL 1741, CSA C22.

Enclosure

• Colour: Blue (RAL 5012)
• Power terminals: 6 mm² / AWG10
• Protection category: IP43 (electronic components), IP22 (connection area)
• Weight: 0.65kg
• Dimensions (H x W x D): 100 x 113 x 60 mm
