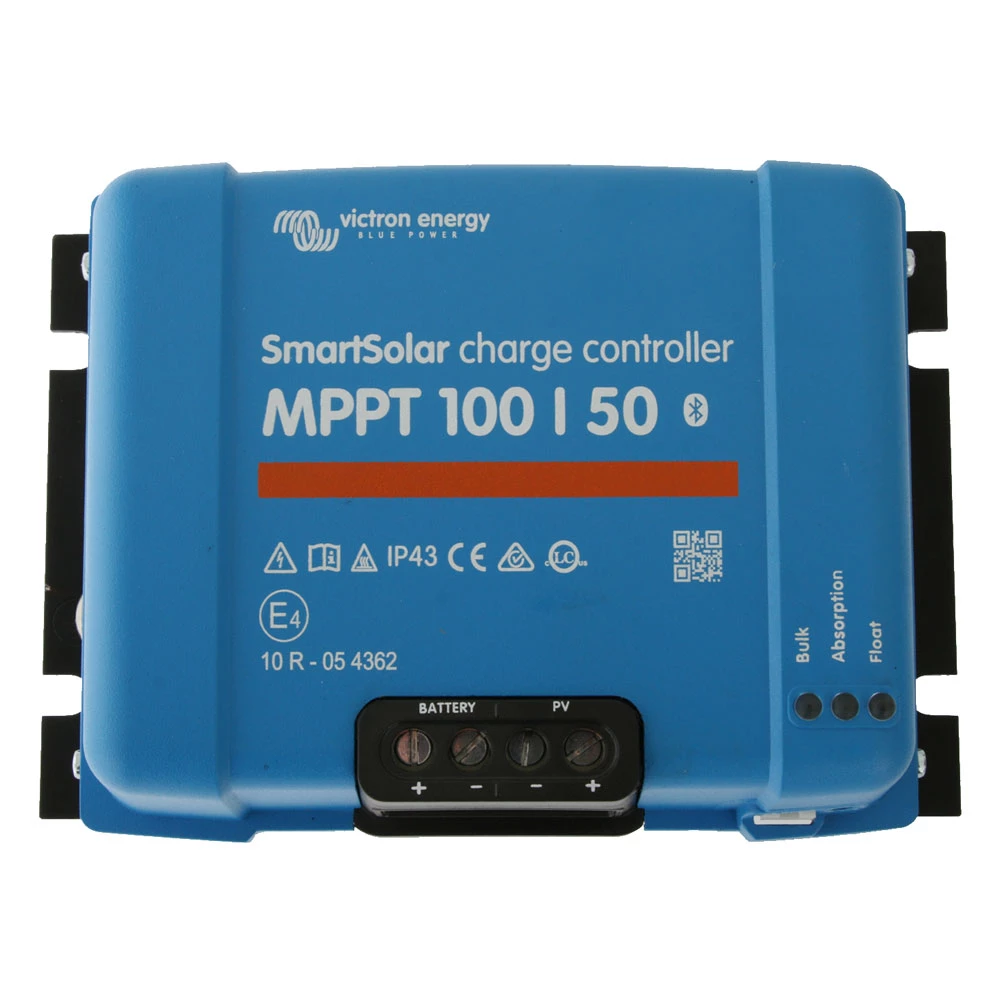

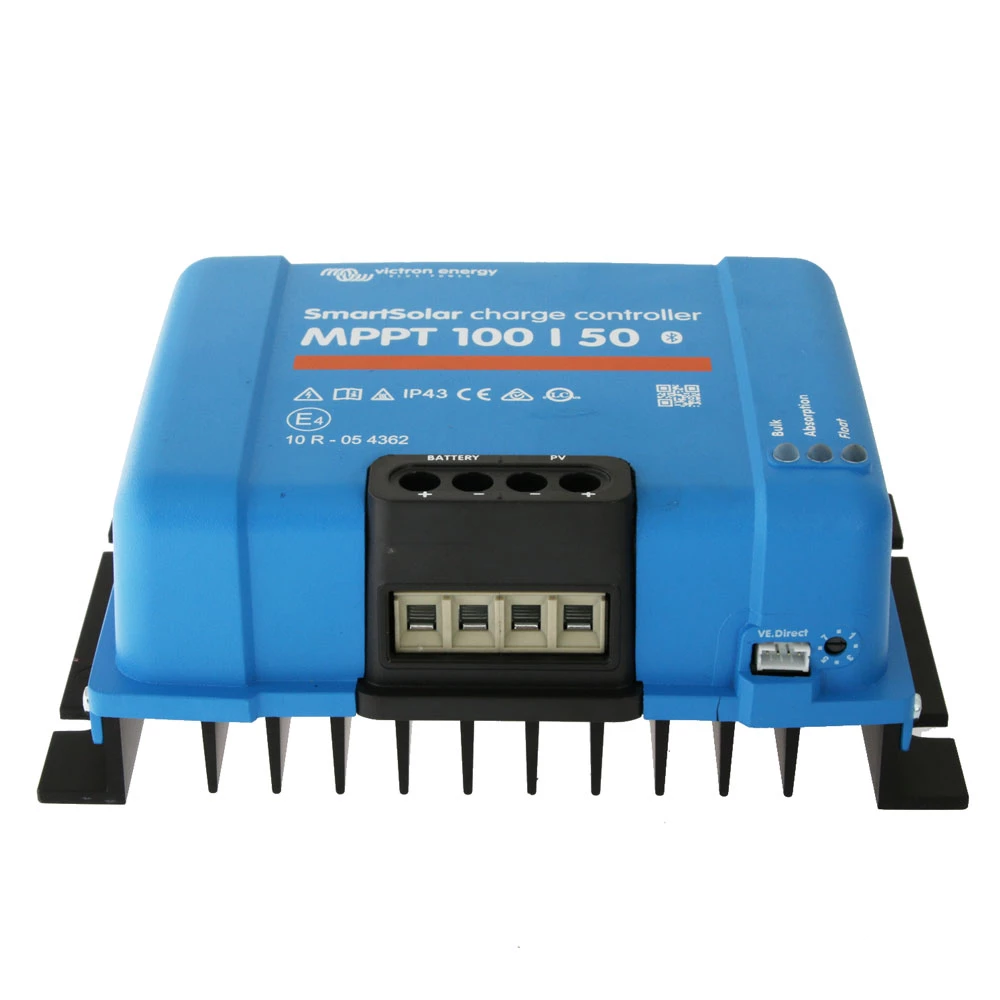

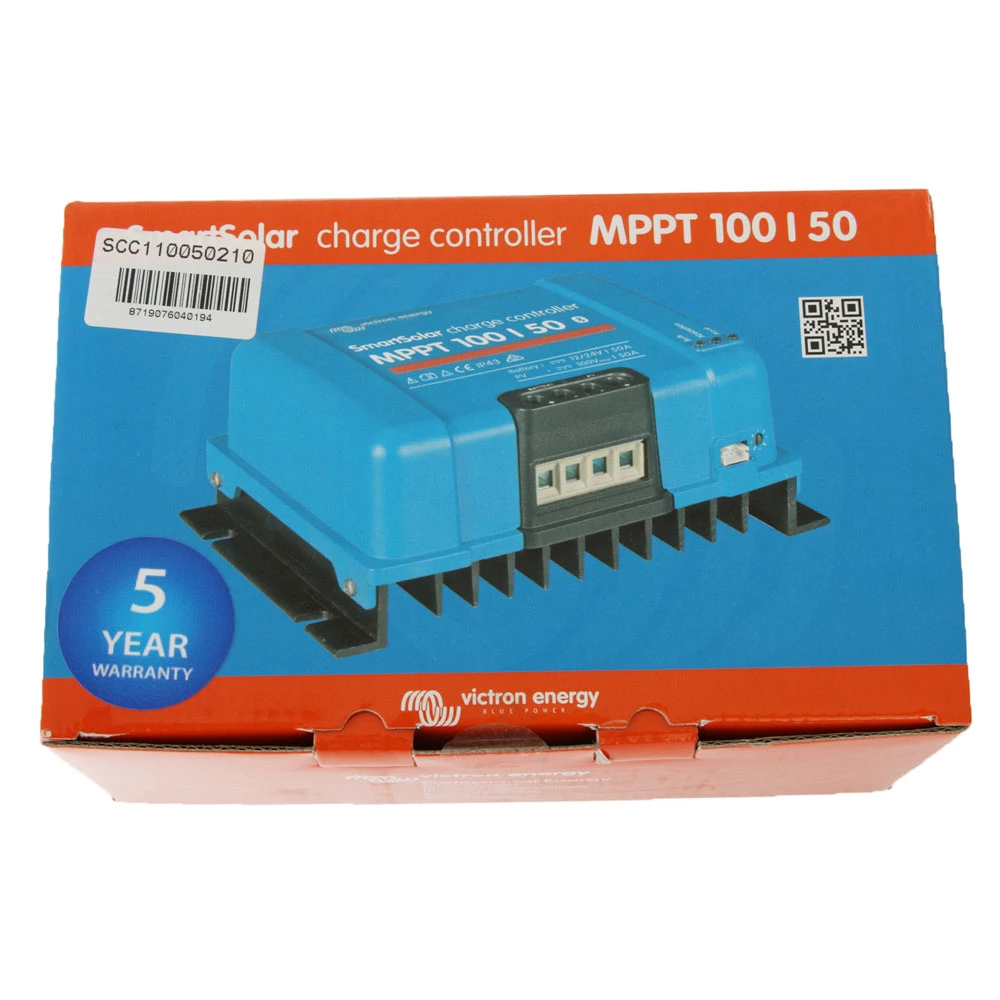

Victron Energy Smart Solar Charger 100A

Achieve full charge in the shortest possible time

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, Victron Energy Smart Solar Charger maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations – even when there is no internet connection or phone signal nearby – you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Victron Energy Smart Solar Charger Features:

• Ultra-fast Maximum Power Point Tracking (MPPT)
• Advanced Maximum Power Point Detection in case of partial shading conditions
• Outstanding conversion efficiency
• Natural convection cooling
• Automatic battery voltage recognition
• Flexible charge algorithm
• Over temperature protection and power derating when temperature is high

Victron Energy Smart Solar Charger Specifications:

• SmartSolar Charge Controller: 100/50
• Load Output: No
• Battery Voltage: 12/24
• Optional Display: MPPT control
• Bluetooth: Built-in
• Com. Port: VE.Direct
• Remote On-Off: No
• Programmable Relay: No
• Wire Box: M
