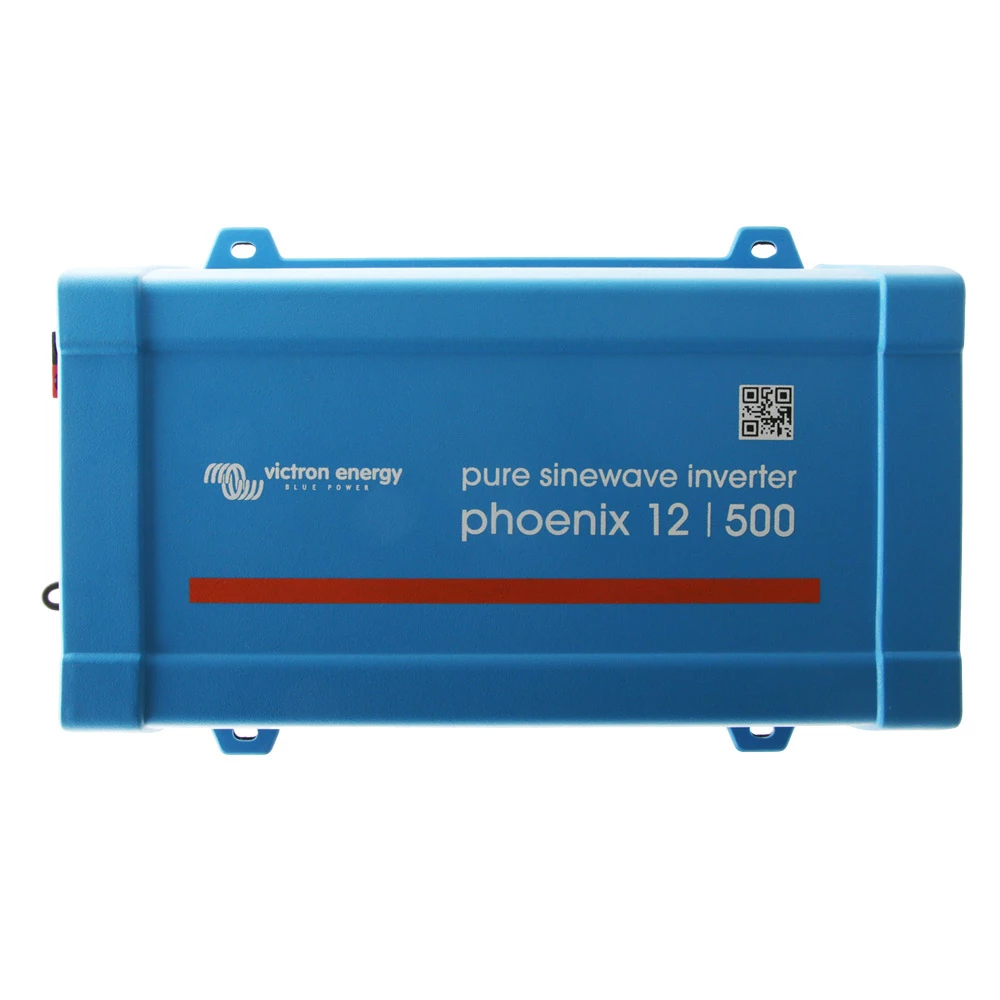

Victron Energy Phoenix Pure Sine Wave Inverter 12/500 With VE.Direct AU/NZ Outlet

Take control of your charging needs when on the go

The Victron Energy Phoenix Pure Sine Wave Inverter allows you to power domestic equipment – requiring 230V/120V AC – using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V or 48V DC.

The VE.Direct port can be connected to a computer via the VE.Direct to USB interface cable, or a smartphone (Apple and Android), tablet, macbook and other devices via the VE.Direct Bluetooth Smart dongle. This allows you to monitor In- and output voltage and current alarms. You can also configure: low voltage alarm trip and reset levels, low voltage cut-off and restart levels, output voltage 210-245V, frequency 50Hz or 60Hz, ECO mode on/off and ECO mode sense level.

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

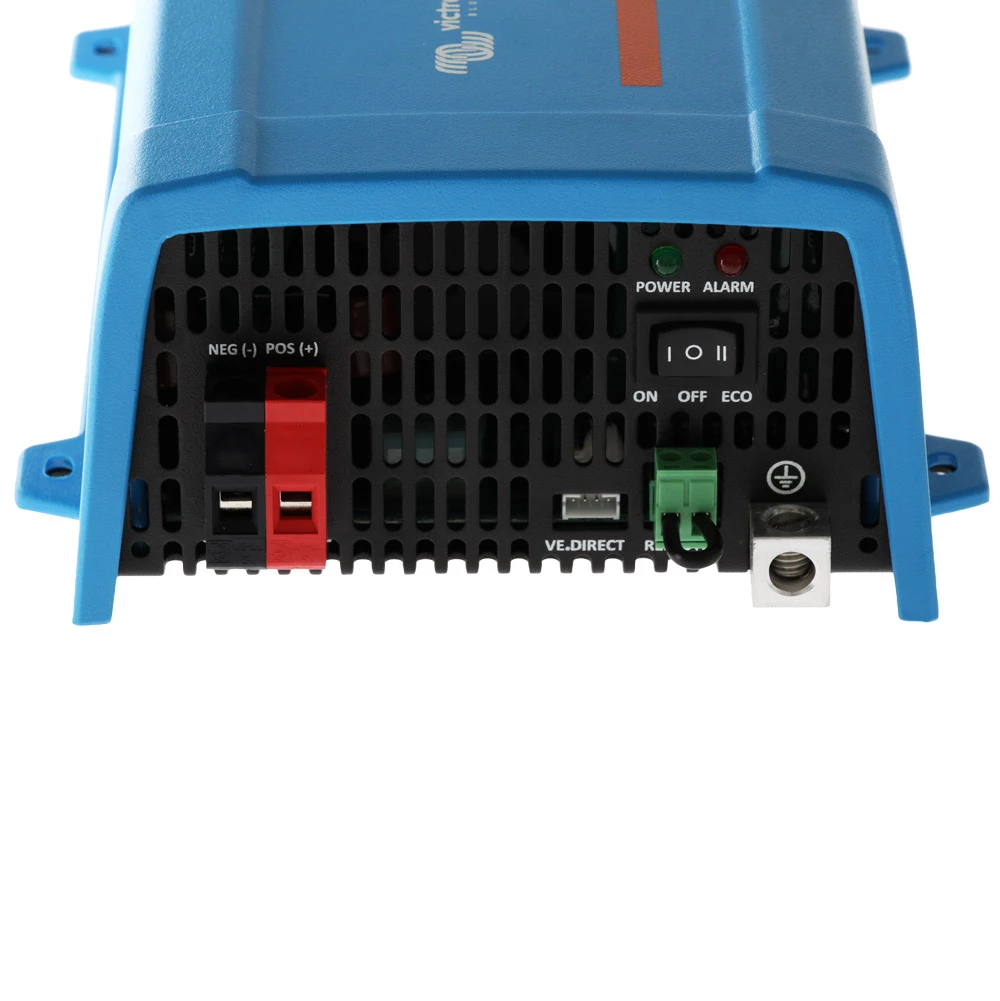

Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption

Victron Energy Phoenix Pure Sine Wave Inverter Features:

• Low voltage alarm trip and reset levels
• Low voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50Hz or 60Hz
• ECO mode on/off and ECO mode sense level
• In- and output voltage and alarms
• Part number: PIN125010300

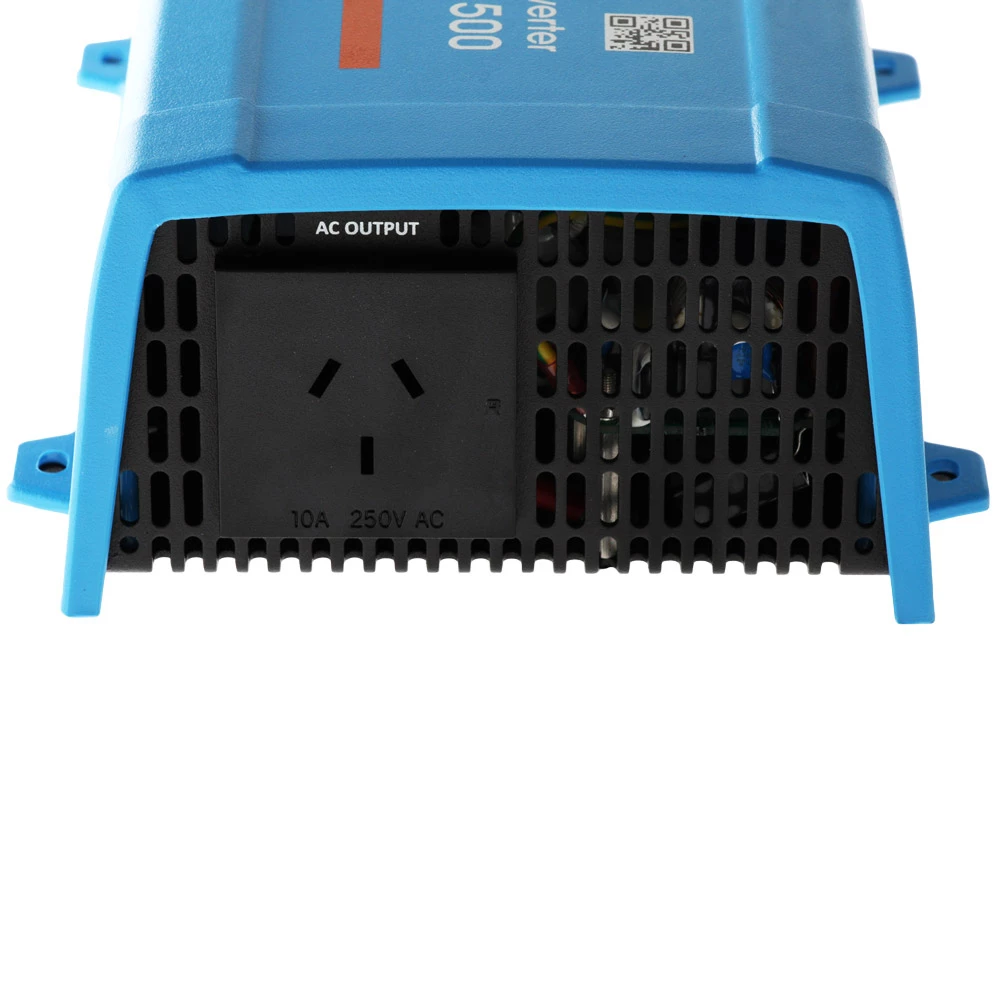

• AU/NZ outlet
• 800VA pure sine wave output
