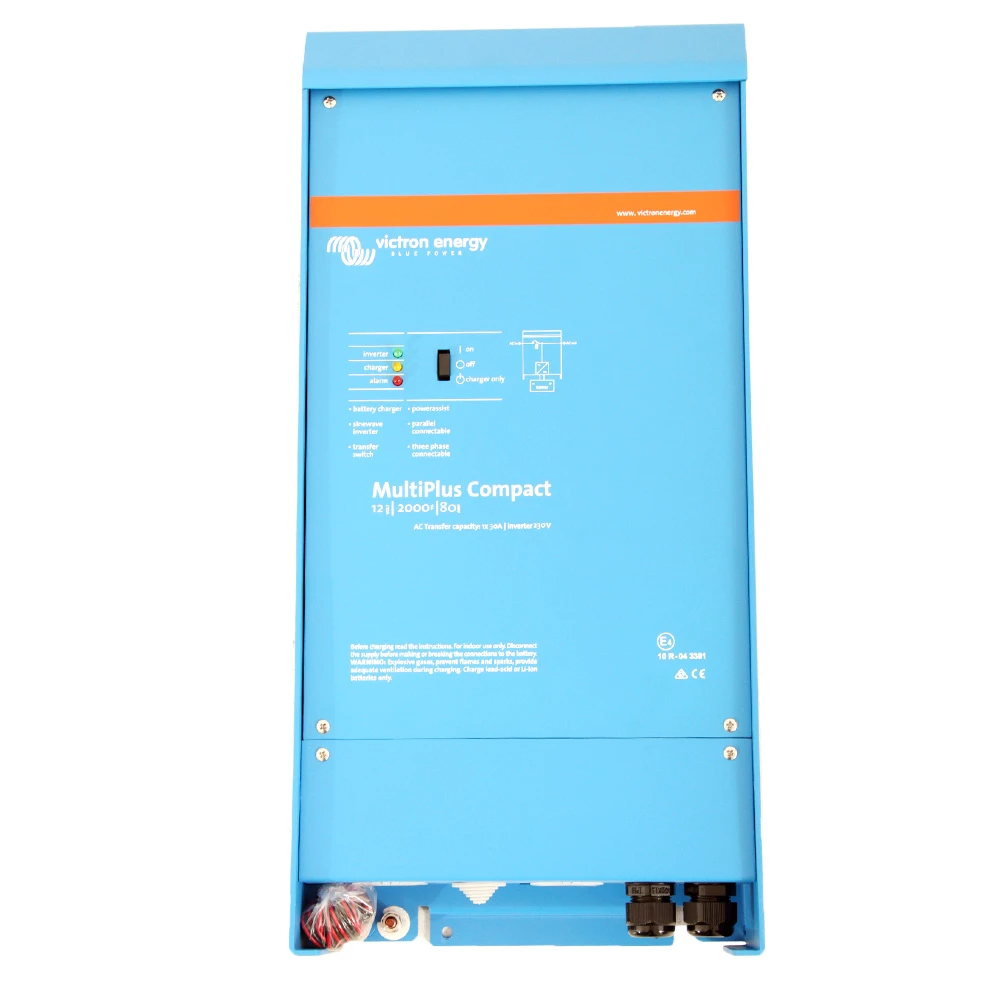

Victron Energy MultiPlus Compact Inverter/Charger 12/2000/80-30 230VAC

Combined inverter and charger in one elegant package

The Victron Energy MultiPlus Compact Inverter/Charger is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure.

Multifunctional
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

Unique PowerAssist feature
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more.

Victron Energy MultiPlus Compact Inverter/Charger Features:

• Two AC outputs
• Virtually unlimited power thanks to parallel operation – Up to 6 Mults can operate in parallel to achieve higher power output
• Three phase capability – In addition to parallel connection, three units of the same model can be configured for three phase output
• PowerControl -Dealing with limited generator, shore side or grid power
• PowerAssist -Boosting the capacity of shore or generator power
• Solar energy: AC power available even during a grid failure
• On-site monitoring and control
• Remote monitoring and control
• Remote configuring

Victron Energy MultiPlus Compact Inverter/Charger Specifications:

• Model: Multiplus 12v – C 12/2000/80
• PowerControl: Yes
• PowerAssist: Yes
• Transfer switch (A): 30

Inverter

• Input voltage range (V DC): 9.5-17V, 19-33V, 38-66V
• Output: Output voltage: 230 VAC ± 2% – Frequency: 50 Hz ± 0,1% (1)
• Cont. output power at 25°C (VA) (3): 2000
• Cont. output power at 25°C (W): 1600
• Cont. output power at 40°C (W): 1400
• Cont. output power at 65°C (W): 1000
• Peak power (W): 4000
• Maximum efficiency (%): 93/94
• Zero load power (W): 9/11
• Zero load power in AES mode (W): 7/9
• Zero load power in Search mode (W): 3/4

Charger

• AC Input: Input voltage range: 187-265 VAC – Input frequency: 45 –65 Hz – Power factor: 1
• Charge voltage ‘absorption’ (V DC): 14,4 / 28,8 / 57,6
• Charge voltage ‘float’ (V DC): 13,8 / 27,6 / 55,2
• Storage mode (V DC): 13,2 / 26,4 / 52,8
• Charge current house battery (A) (4): 80/50
• Charge current starter battery (A): 4 (12V and 24V models only)
• Battery temperature sensor: yes

Enclosure

• Common Characteristics: Material & Colour: aluminium (blue RAL 5012) – Protection category: IP21
• Battery connection: M8 bolts
• 230V AC-connection: Spring clamp
• Weight: 12kg
• Dimensions: 520 x 255 x 125 mm
