Victron Energy CCGX Colour Control GX Power Monitor

Take control

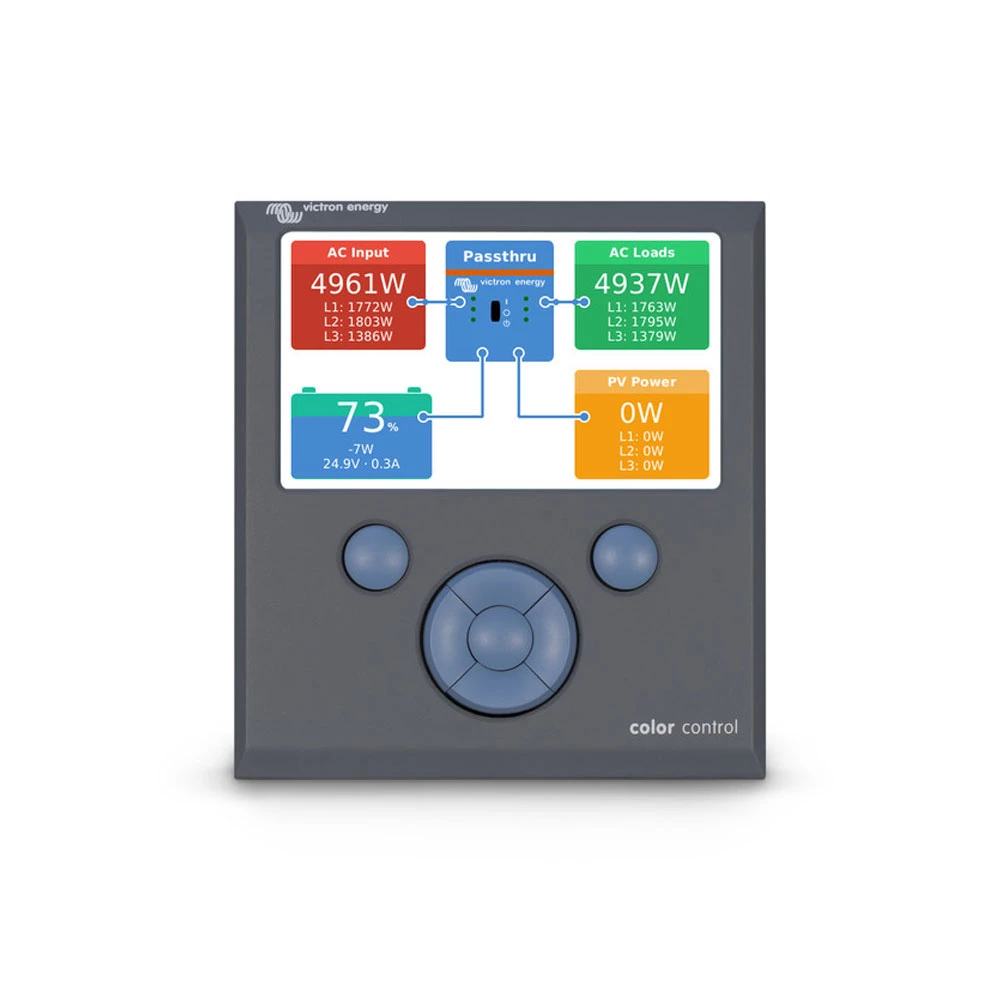

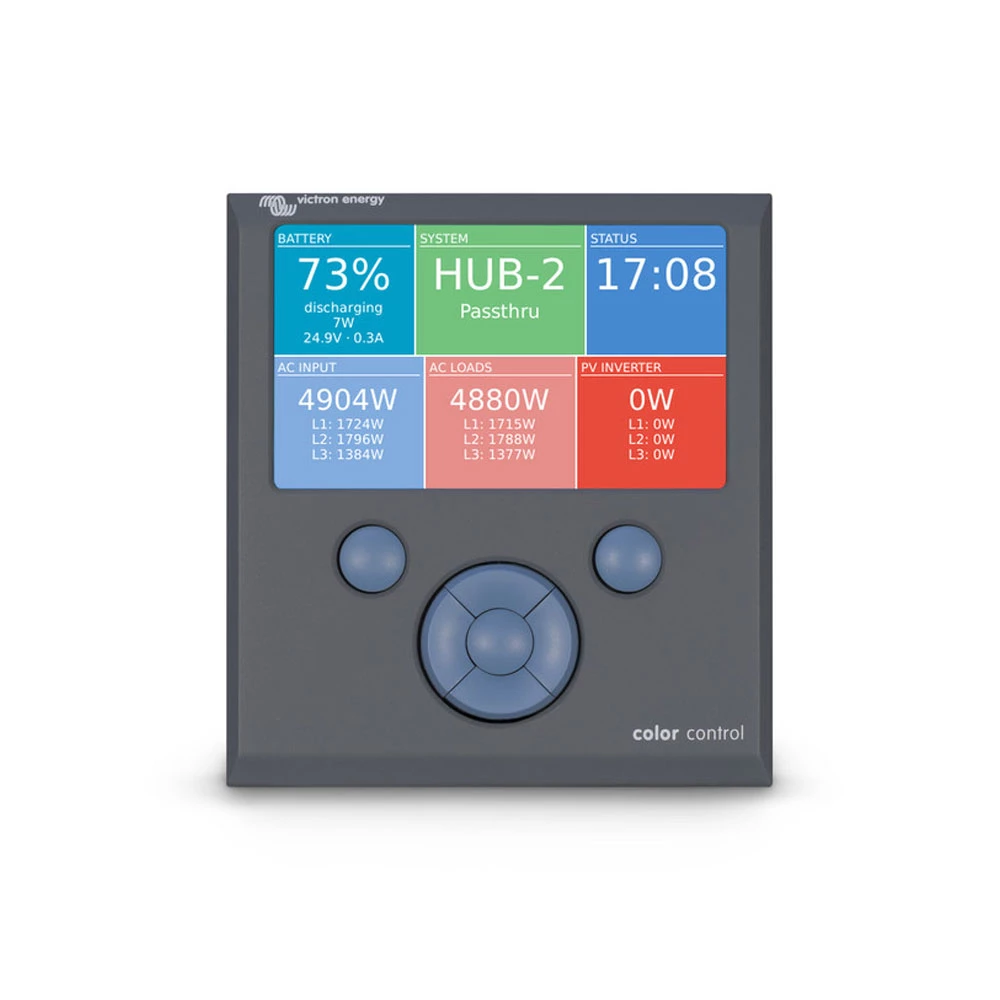

The Victron Energy CCGX Colour Control GX Power
Monitor offers at-a-glance live information, and lets you
control all products connected to it. At a single touch, the
Victron Energy CCGX Colour Control GX Power
Monitor provides an instant overview of your system:
battery state of charge; present power consumption; power harvest
from PV; power provision from mains/generator.

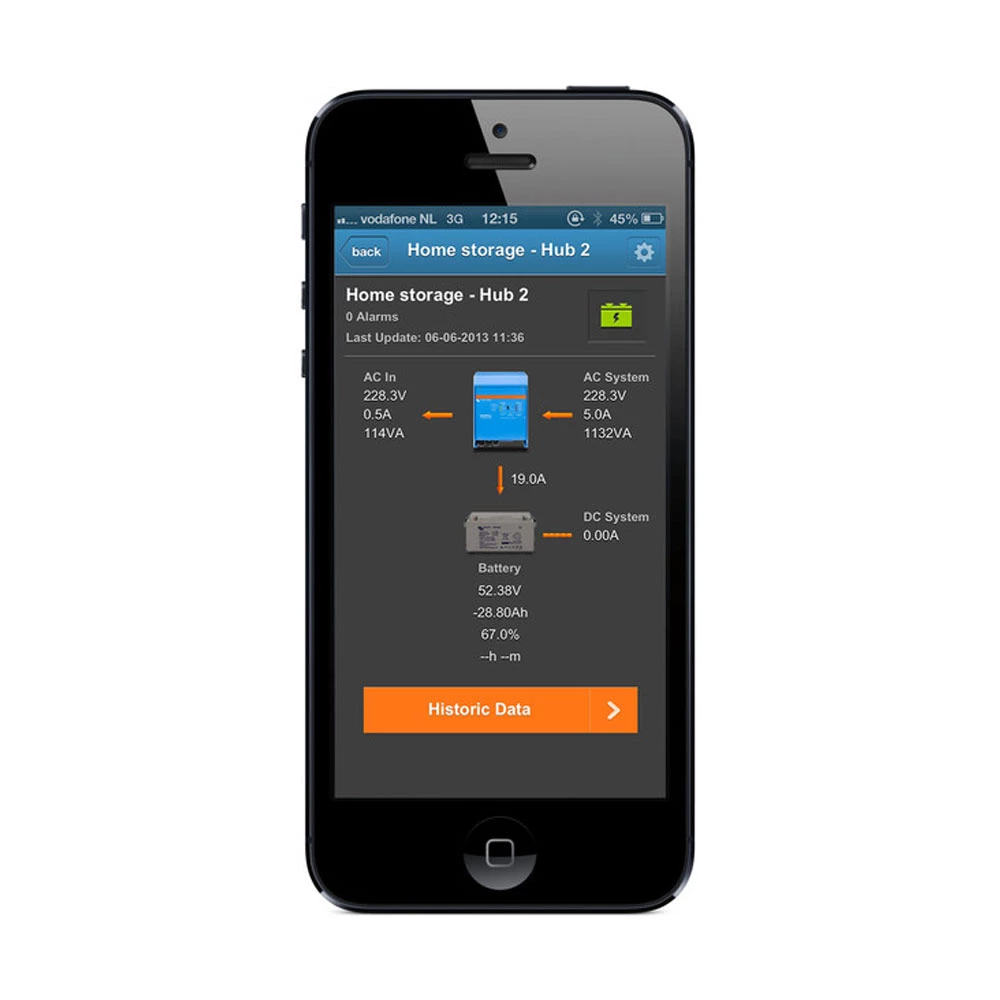

Victron Remote Management
Besides monitoring and controlling products on the
CCGX, the information is also forwarded to
Victron’s free remote monitoring website: the Victron Remote
Management Portal. Victron Remote Management (VRM) provides you
with full access to the very extensive controls and settings of all
system-components which are connected to either your CCGX or Venus
GX. It allows remote user and installer login – from anywhere, at
anytime. This powerful application also provides for hassle-free
diagnostic checks and analysis of archived information.

Automatic Generator start/stop

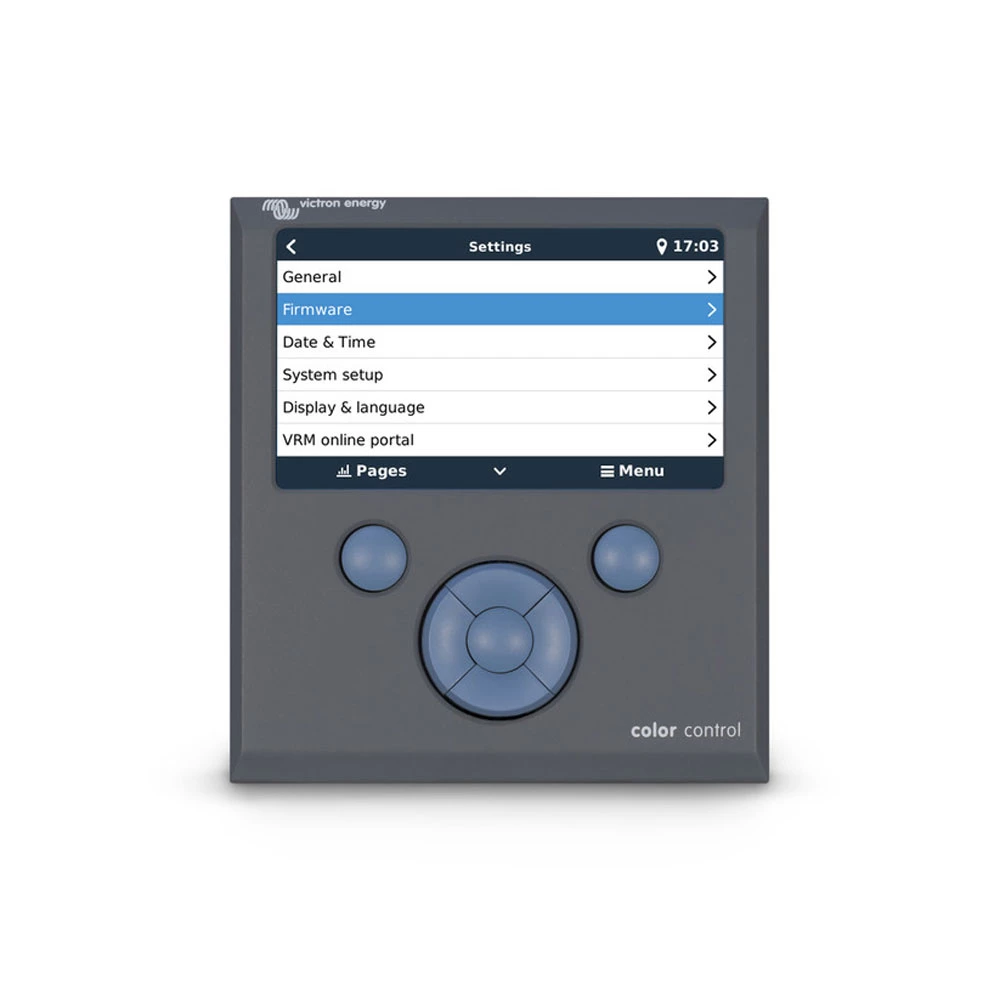

The Colour Control GX can be programmed to
auto-start your generator – triggered by low-voltage; high-demand;
or battery state of charge. It can be further tailored to delay
ignition until the end of ‘quiet’ periods – avoiding accidental
nuisance at dead of night.

Energy Storage Systems – 24 hour Monitoring
The Colour Control GX manages Energy Storage
Systems. It keeps back-up batteries at 100% ; kicks-in during
power-cuts; and diverts excess (solar) power to self-consumption –
saving you money.

Victron Energy CCGX Colour Control GX Power Monitor
Features:

• System controller with graphical user interface
• Provides intuitive control and monitoring for all Victron power
  systems
• Remote Console on VRM
• Automatic genset start/stop
• Energy Storage System
• Data logging
• Automatic software updates (via internet)
• Powered by the Venus OS – embedded linux
• Multiple languages: English, Czech, German, Spanish, French,
  Italian, Dutch, Russian, Swedish,
  Turkish, Chinese, Arabic

Victron Energy CCGX Colour Control GX Power Monitor
Specifications:

• Part number: BPP010300100R
• Dimensions – outer (HxWxD): 130 x 120 x 28mm
• Operating temperature range: -20 to +50°C
• Power supply voltage range: 8 – 70V DC
• Current draw: 12V DC / 24V DC / 48V DC
• Display off: 140mA / 80mA / 40mA
• Display at minimum intensity: 160mA / 90mA / 45mA
• Display at maximum intensity: 245mA / 125mA / 65mA
• Potential free contact 3A / 30V DC / 250V AC (Normally
  open)
• Safety standards: EN 60950-1:2005+A1:2009+A2:2013
• EMC: EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN
  55014-2
• Automotive: E4-10R-053535
