Victron Energy Blue 12V 30A Smart Battery Charger – 1 Output

Keeps your batteries in great shape

The Victron Energy Blue Smart IP22 Charger is a
professional battery charger with built-in bluetooth. It can be
used on devices in your workshop and on motor vehicles, such as
(classic) cars; motorbikes; boats and camper-vans. This Europen
designed 30 Amp 12 Volt Battery Charger is the latest in
state-of-the-art technology with a built in Li-ion Lithium-ion
charge mode. It’s a small versatile charger that’s perfect to have
around when you need to give your batteries some extra
maintenance.

The battery is charged, smartly… to perfect
condition
The seven-step charging algorithm gets the best out of your
battery. The charger gives the battery the power it needs,
maintains its health, ensures better performance… and a longer
life.

Recovery of deeply-discharged ‘dead’ batteries
Unlike other brands, the Victron Energy Blue Smart IP22
Charger will attempt to recharge a deeply-discharged
battery by force-feeding it with a low current. Normal charging
will then be resumed as soon as there is sufficient voltage across
the battery terminals.

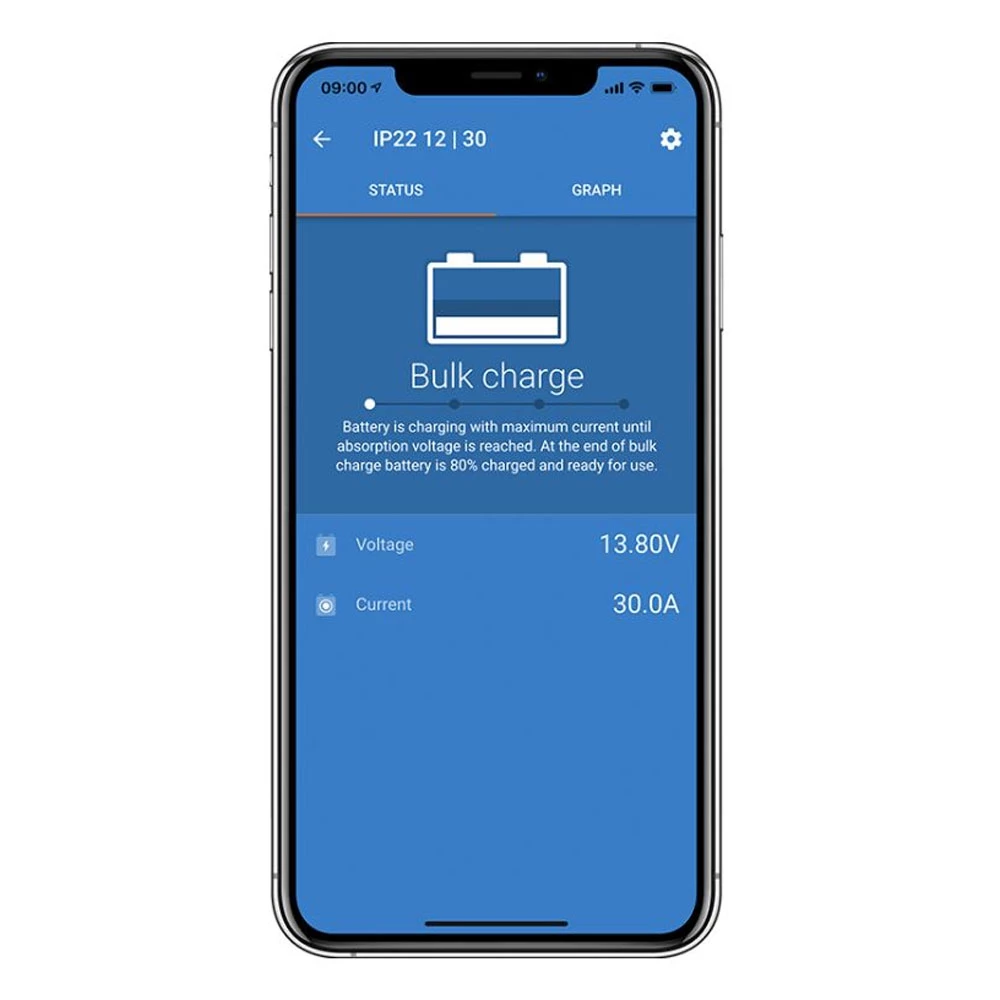

Check the status of your battery remotely
The Victron Energy Blue Smart IP22 Charger is
equipped with built-in Bluetooth, so the status of the charger and
the battery can be checked on a smartphone, tablet or laptop. All
settings of the charger can be configured with the VictronConnect
app.

High efficiency
With up to 94% efficiency, these chargers generate up to four times
less heat when compared to the industry standard.
And once the battery is fully charged, power consumption reduces to
0,5 Watt, some five to ten times better than the
industry standard.

Victron Energy Blue Smart IP22 Charger
Features:

• Bluetooth Smart
• High efficiency
• Adaptive multi-stage charge algorithm: test – bulk – absorption
  – recondition – float – storage
• Storage Mode: less maintenance and ageing when the battery is
  not in use
• Also charges Li-ion (LiFePO₄) batteries
• NIGHT and LOW setting
• Protected against overheating
• Eleven LEDs for status indication
• Recovery of deeply-discharged ‘dead’ batteries

Victron Energy Blue Smart IP22 Charger
Specifications:

• 12V, 1 output / 15 / 20 / 30A
• Input voltage range: 180 – 265 VAC
• Charge current, normal mode: 15 / 20 / 30 A
• Charge current, NIGHT or LOW: 7,5 / 10 / 15 A
• Efficiency: 93%
• No load power consumption: 0.5 W
• Frequency: 45 – 65 Hz
• Number of outputs: 1
• Charge voltage ‘absorption’: Normal: 14,4V High: 14,7V Li-ion:
  14,2V
• Charge voltage ‘float’: Normal: 13,8V High: 13,8V Li-ion:
  13,5V
• Charge voltage ‘storage’: Normal: 13,2V High: 13,2V Li-ion:
  13,5V
• Charge algorithm: 6-stage adaptive
• Can be used as power supply: Yes
• Protection: Battery reverse polarity (fuse) Output short
  circuit Over temperature
• Operating temp. range: -20 to +50°C
• Humidity (non-condensing): Max 98%

Enclosure

• Material & Colour: Aluminium (blue RAL 5012)

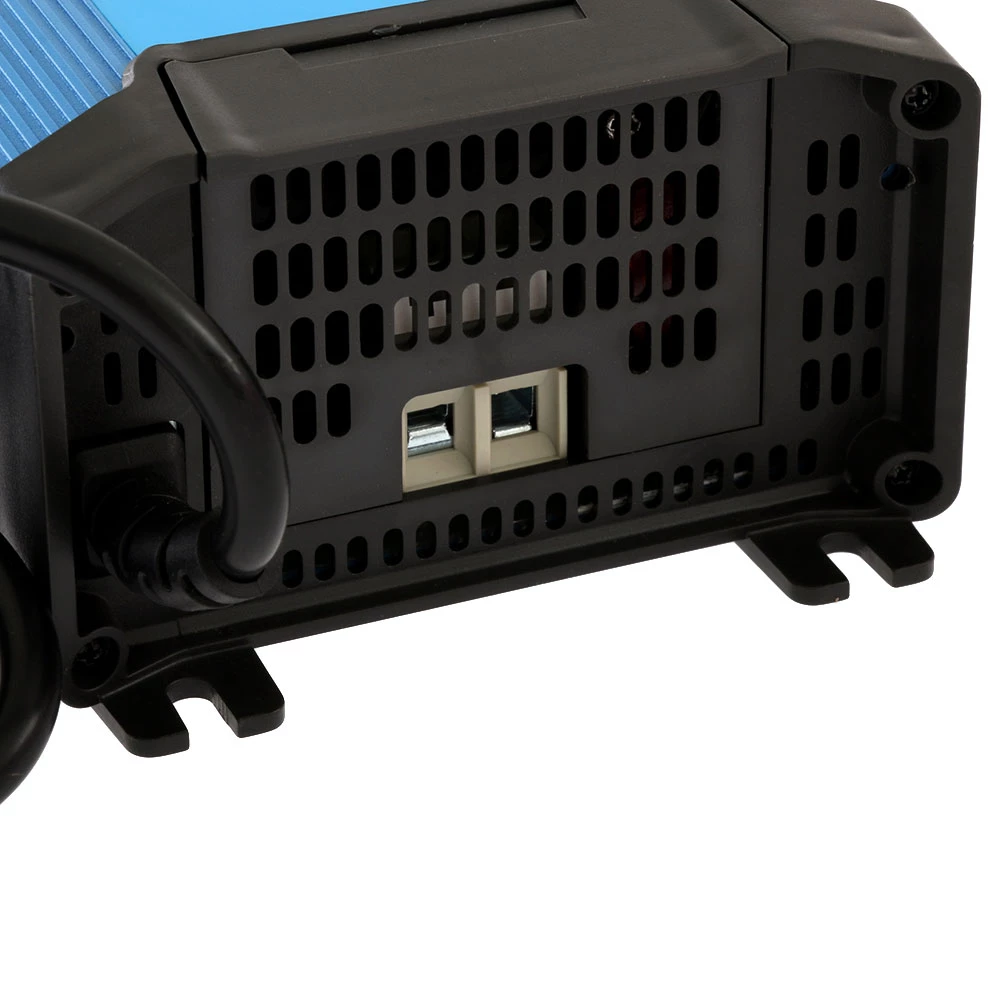

• Battery connection: Screw terminals 13 mm² / AWG6
• 230 V AC connection: Cable of 1,5 meter with CEE 7/7 plug, BS
  1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
• Protection category: IP22
• Weight :1,3 kg
• Dimensions (h x w x d): 235 x 108 x 65 mm

Standards

• Safety: EN 60335-1, EN 60335-2-29
• Emission: EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN
  61000-3-3
• Automotive: E4-10R
