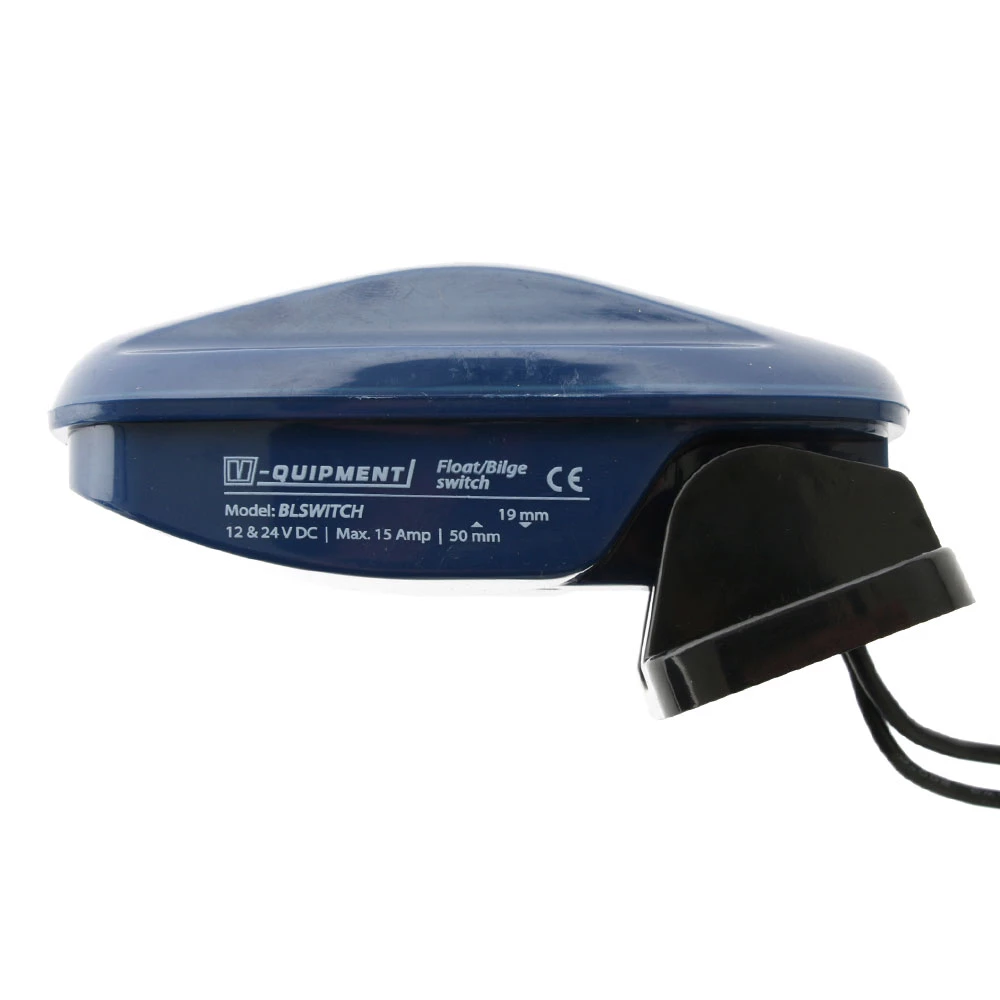

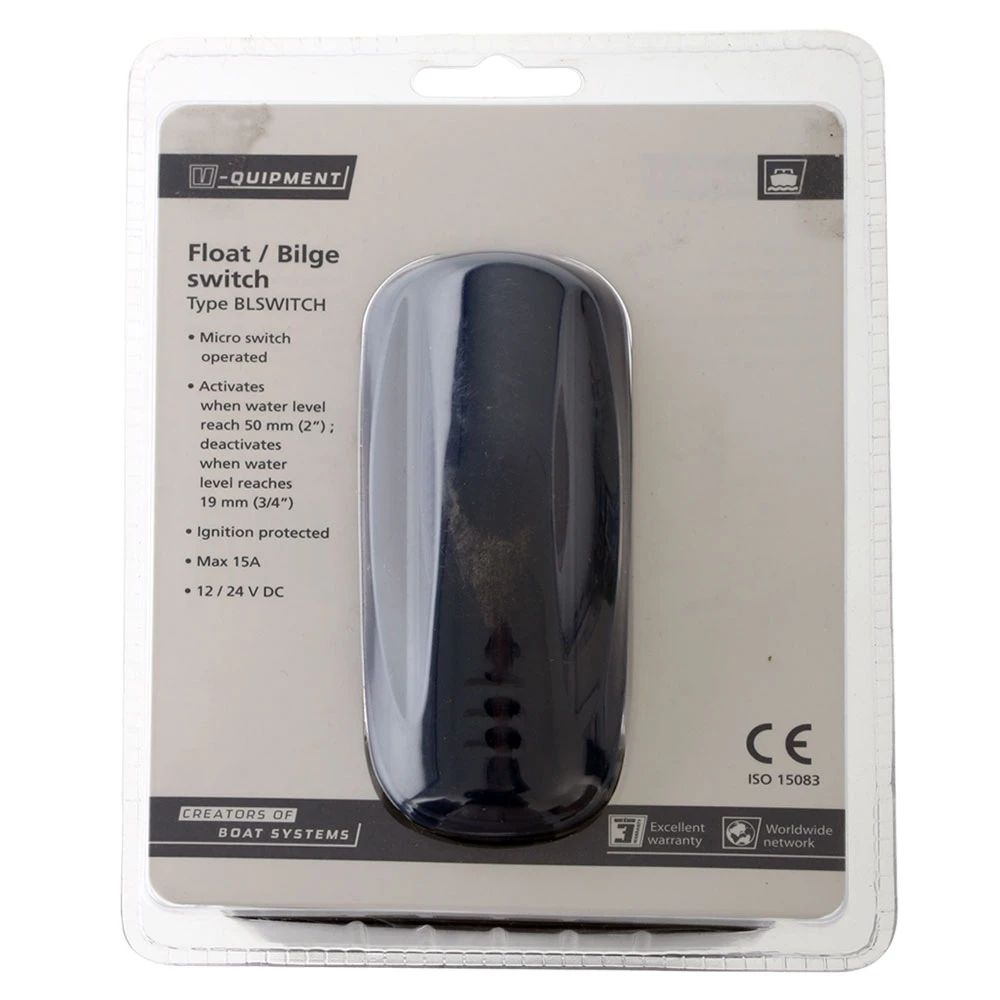

V-Quipment Automatic Float Switch

Turn your pump on and off automatically

To complement the VETUS range of electric bilge pumps, here comes
the V-Quipment Automatic Float Switch. This switch
activates the pump when the bilge water level reaches 50 mm. This
means that manual control of the pump is no longer required, which
is not only very convenient but more importantly, decreases the
risk of damage to the boat. Enhanced safety is provided, especially
during prolonged absence.

Activation and deactivation
The pump is deactivated when the water level is back to a mere 19
mm. The range of 31 mm between the activation and deactivation
levels prevents the pump from continuously cycling on and off due
to the boat rolling.

Durable and reliable construction
The V-Quipment Automatic Float Switch is made from
high quality plastic and operates with a micro-switch within a
fully enclosed housing. As a result, the switch is highly reliable
and can be used in fresh water, saltwater, and even contaminated
bilge water with no effect on performance. The switch is also
‘ignition protected’, which means that it is suitable for areas
where fuel and gas tanks are present.

Easy installation
The level switch is supplied with stainless steel screws for
mounting. The routing of cables has been incorporated into the
design to prevent them getting tangled and impeding the
operation.

V-Quipment Automatic Float Switch Features:

• Automatic level switch for convenience and safety on
  board
• Highly reliable design thanks to top quality materials and
  construction
• Activates at a water level of 50 mm, deactivates at just 19
  mm
• Suitable for the engine compartment and spaces where fuel and
  gas tanks are present
• Suitable for fresh and saltwater
• Suitable for 12 and 24 Volt
• Comes with 1 metre cable

V-quipment Automatic Float Switch
Specifications:

• Voltage (V): 12 and 24 V
• Dimensions (inches): Length 4 5/8 x Width 2 3/4 x Height 2
  1/4
